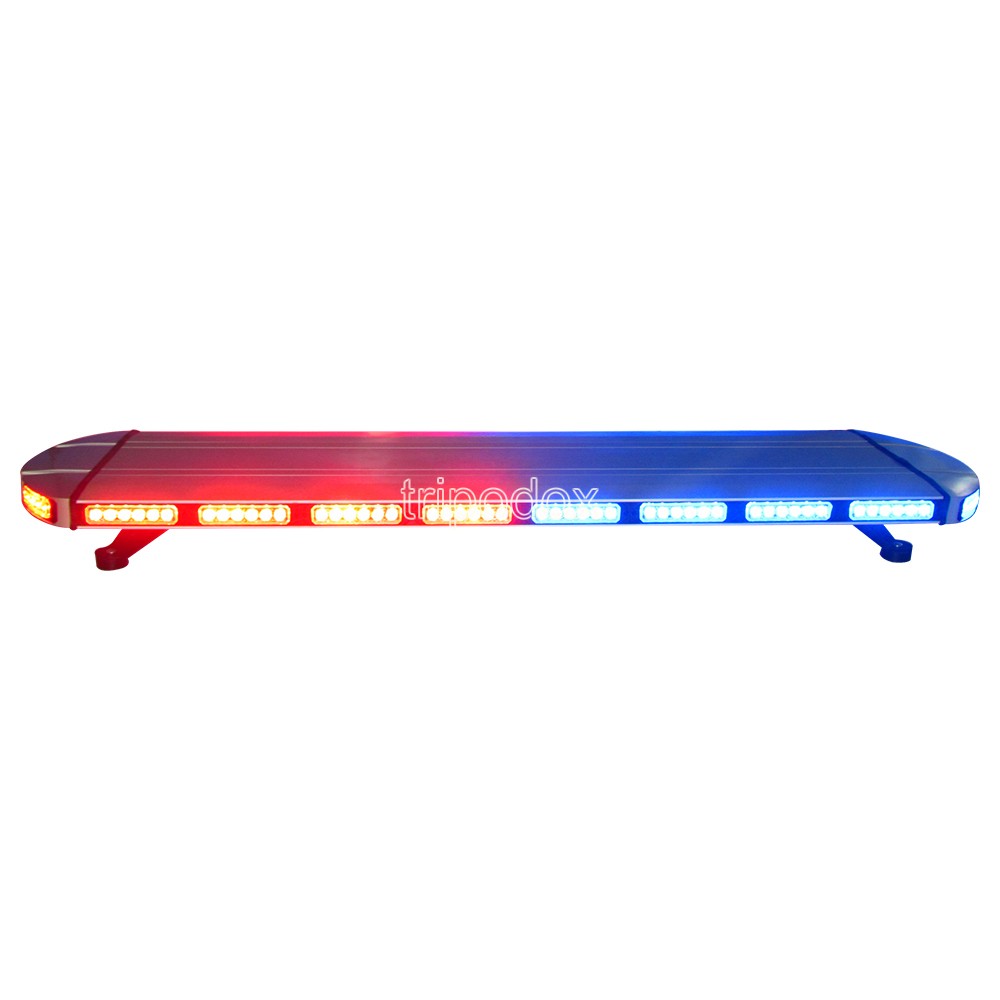

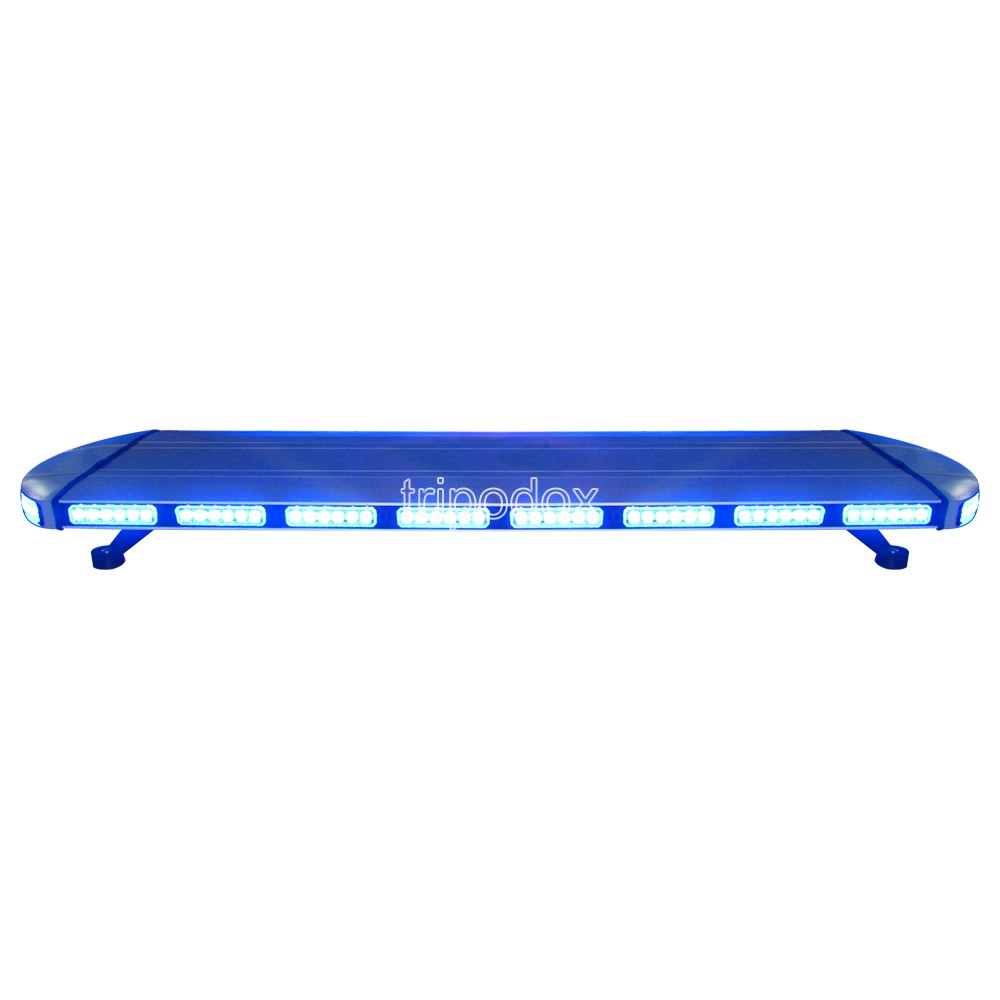

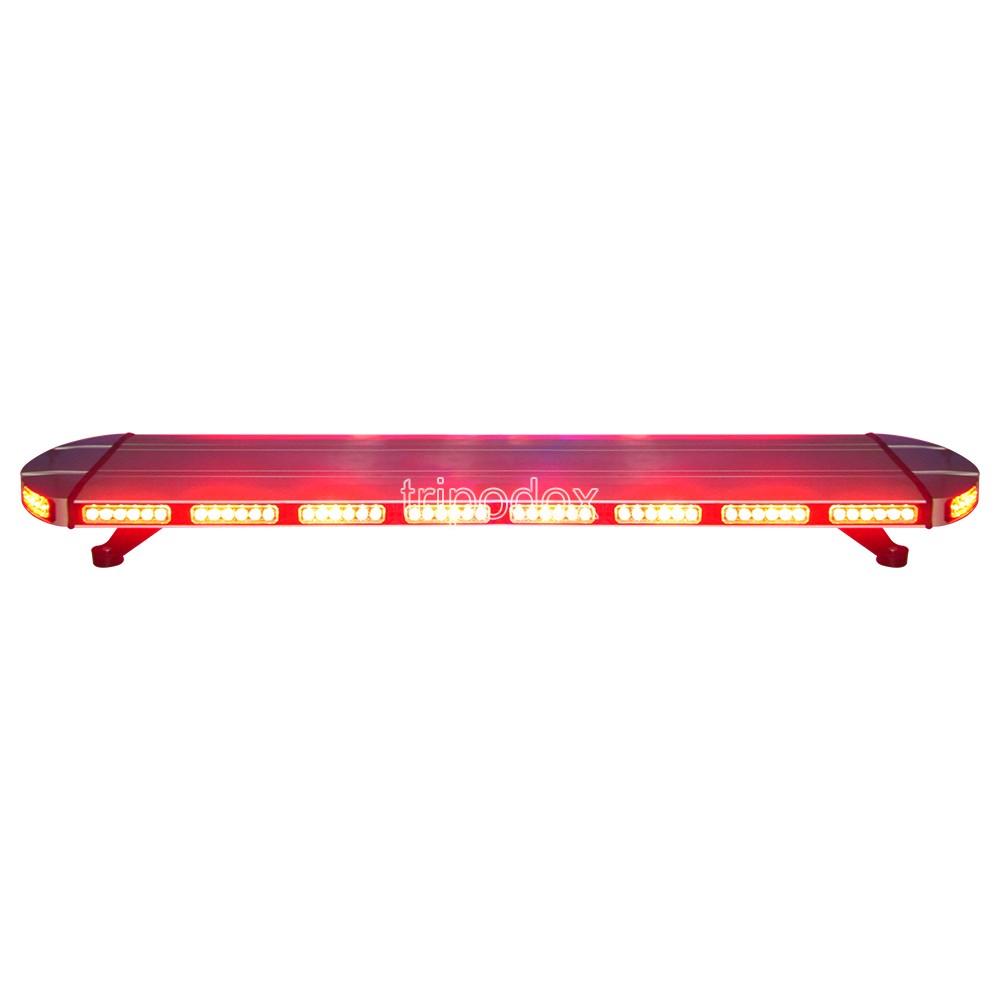

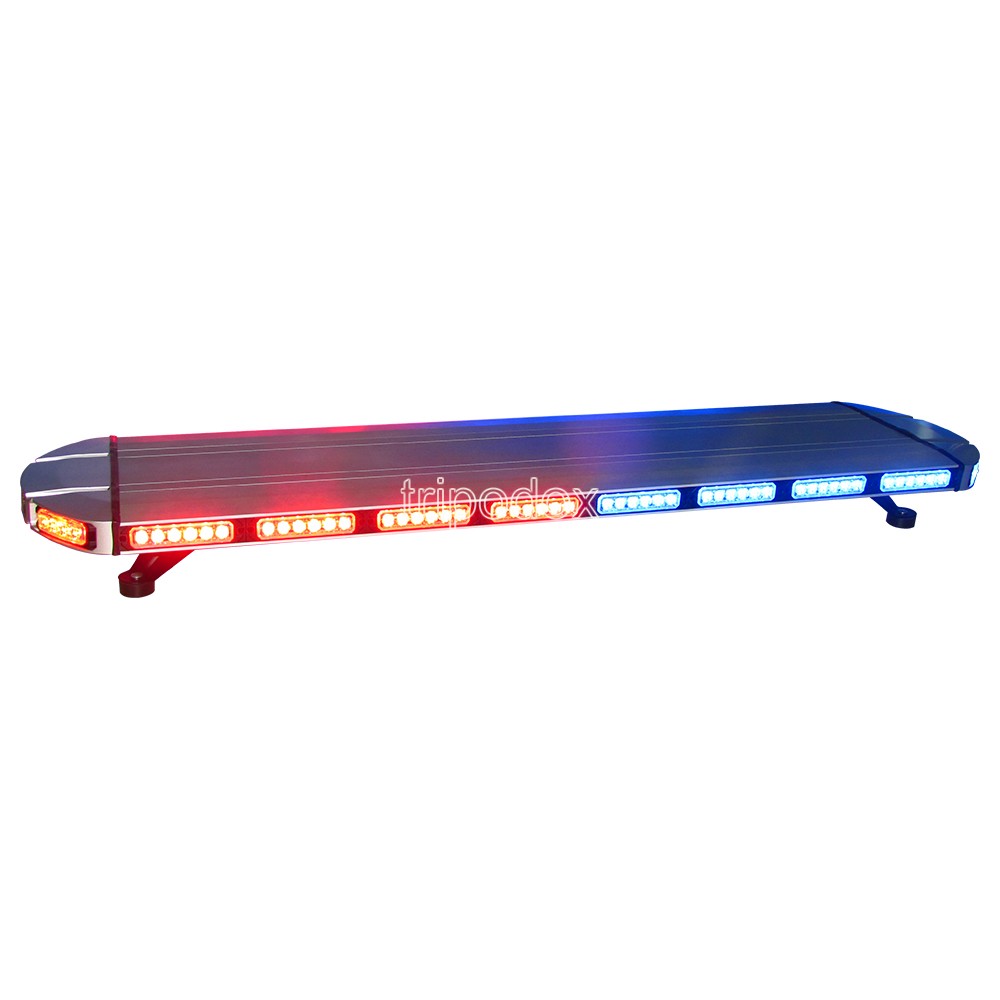

TBD-1836H Lightbar

Scan code

Brief Introduction:

48" new stype Red-Blue LED lightbar with High-Power LEDs. Multi-Flash patterns can be choice.

Color:Red-Blue

Red-Blue
Red
Blue

Voltage:DC12V

DC12VDC24V

Product Details

Features


●  The shell is made of high-strength polycarbonate with good compression resistance and light transmission.

●  The top and base are made of aluminum alloy, which is resistant to corrosion, oxidation and good heat conduction.

●  With 1W High-Power LED as Lamp Soucee, and total 16 LED lights, 4 flash lights and 2 alley lights.

●  LEDs available in single and dual color combinations of Red, Blue, Amber, Green and White.

●  More than 5 types flash patterns automatically flash.

●  Mounting: Fixed with brackets, hooks and bolts.

●  The general length of lightbar is 48".

●  Welcome to customize the lightbars of different sizes, colors and flashing types.

●  Warranty: 5 Years.


Specification


Model No. TBD-1836H
Voltage DC12V
Current 11A
Output Power 132W
Lamp Source 1W High-Power LED
LED Color Red / Blue / Amber / White
Lens Color Clear
Operating Temp -40℃ to +65℃
Dimensions (LxWxH) 1245x302x105 mm
Carton Size 1300x340x180 mm, 1 Set/Ctn
Material Aluminum Base and PC Lens
Weight 16 kg
Mounting Fixed with Brackets and Hooks
Configuration 6D LED Modules: 16 PCS
4D LED Modules: 6 PCS
