Product Details
Product Structure
Specification
Model No.
TBD-1700HX
Voltage
DC12V
Current
108W
Output Power
9A
Lamp Source
3W High-Power LED
LED Color
Red / Blue / Amber / White
Lens Color
Red / Blue / Amber
Operating Temp
-40℃ ~ +65℃
Material
Aluminum Base and PC Lens

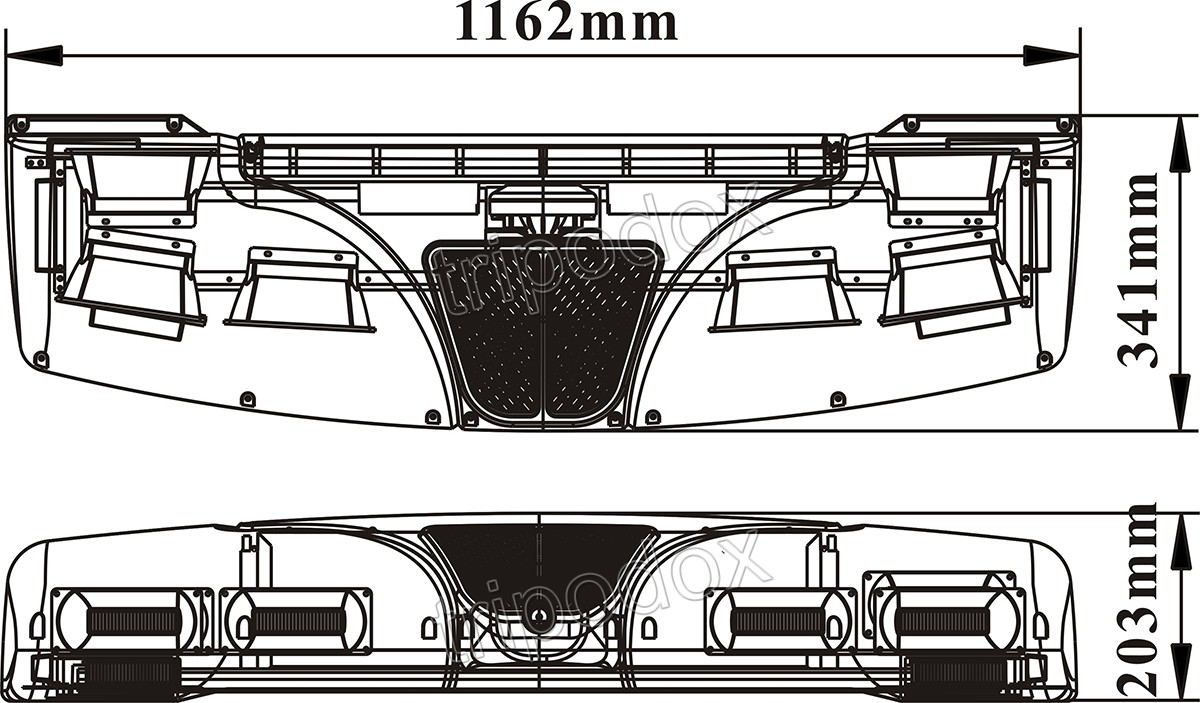

Dimensions (LxWxH)
1162x341x203 mm
Carton Size
1290x390x270 mm, 1 Set/Ctn
Weight
17 kg
Mounting
Fixed with Brackets and Hooks.
Configuration
4C LED Modules: 6 PCS
4D LED Modules: 6 PCS
100Watts Speaker: 1 PC
LED Display Screen: 1 PC
