Product Details
Features

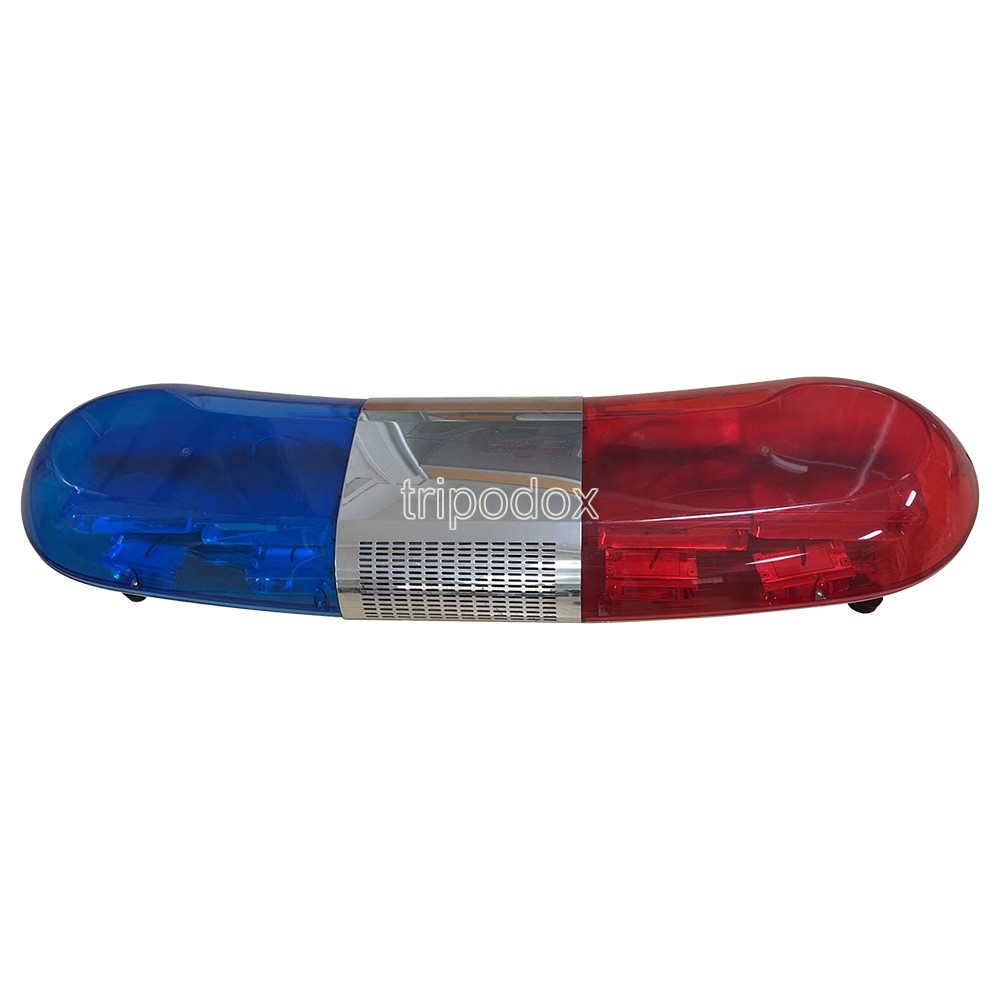

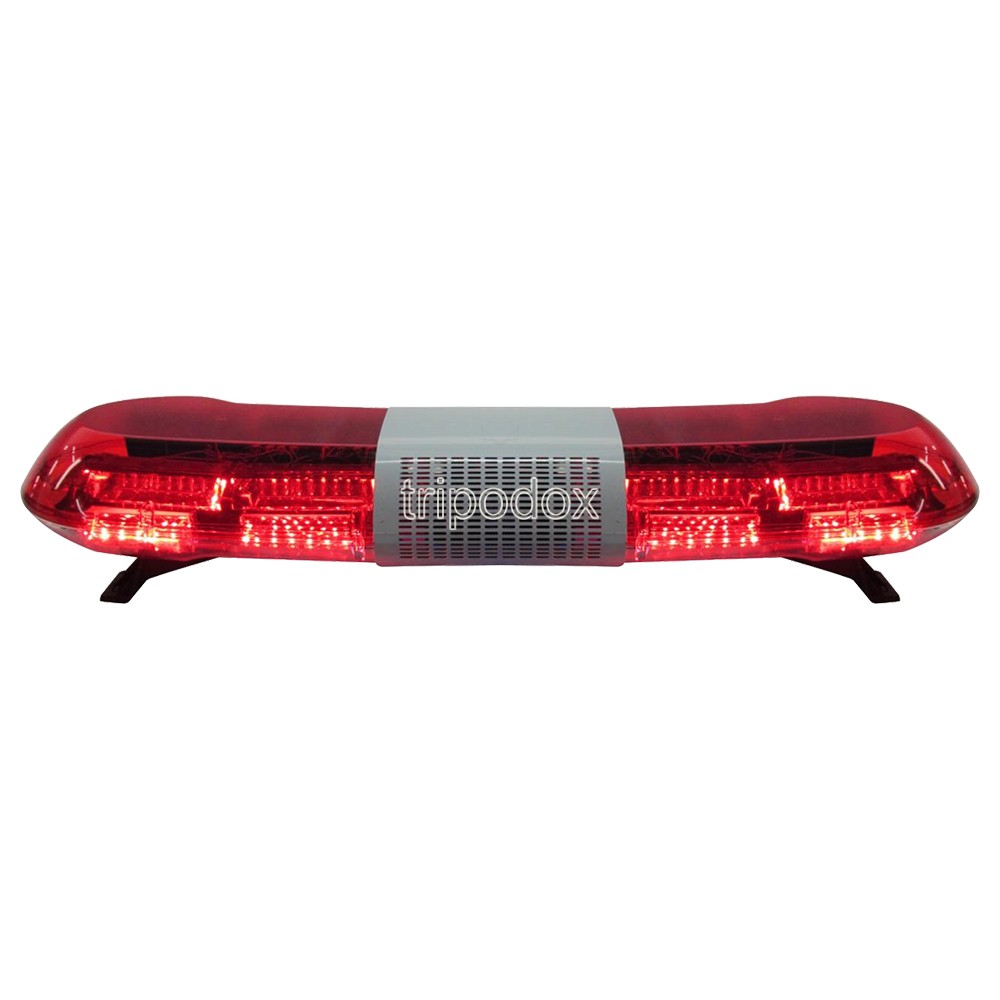

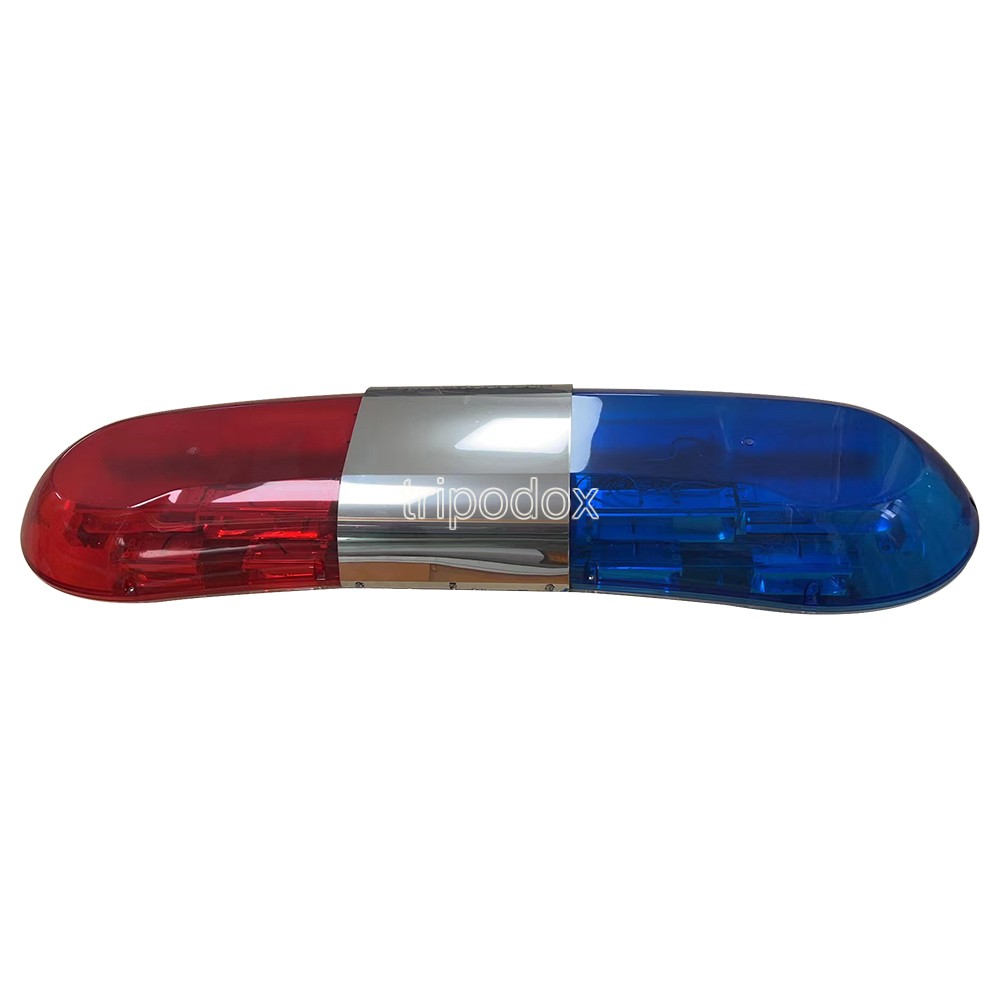

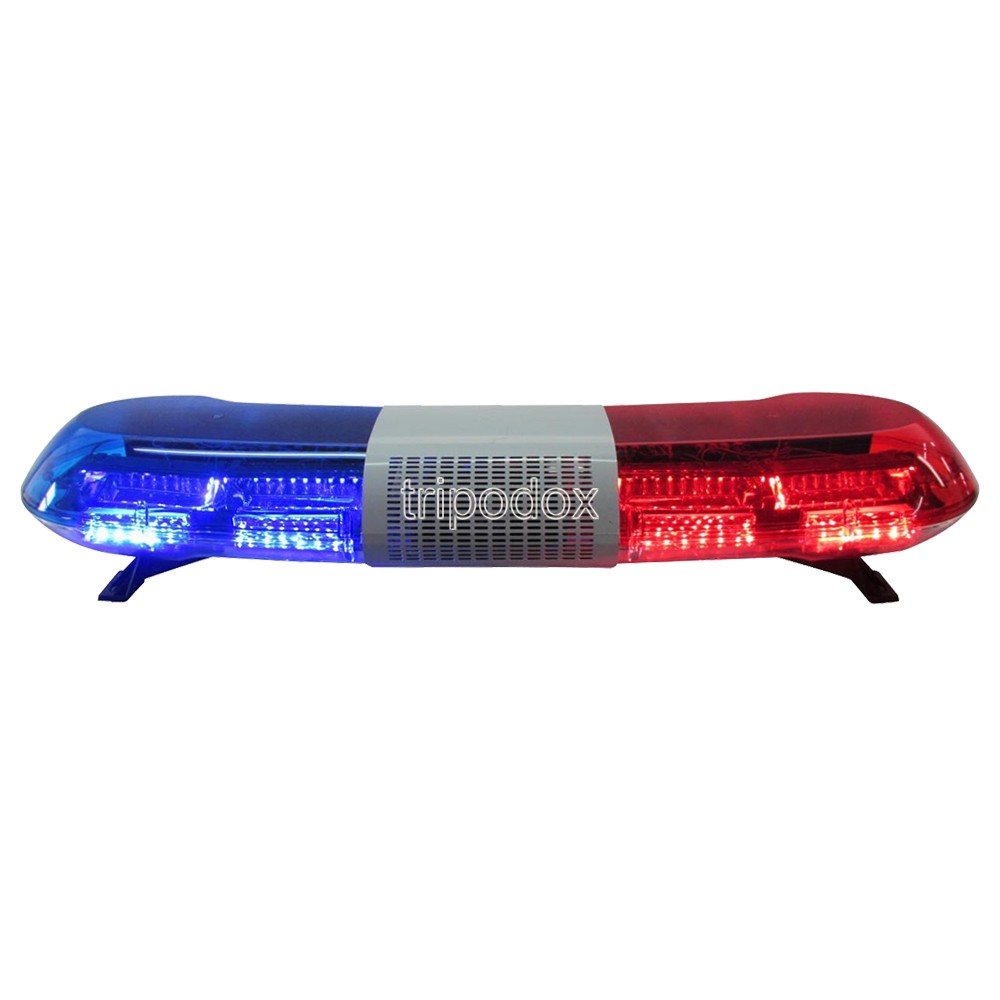

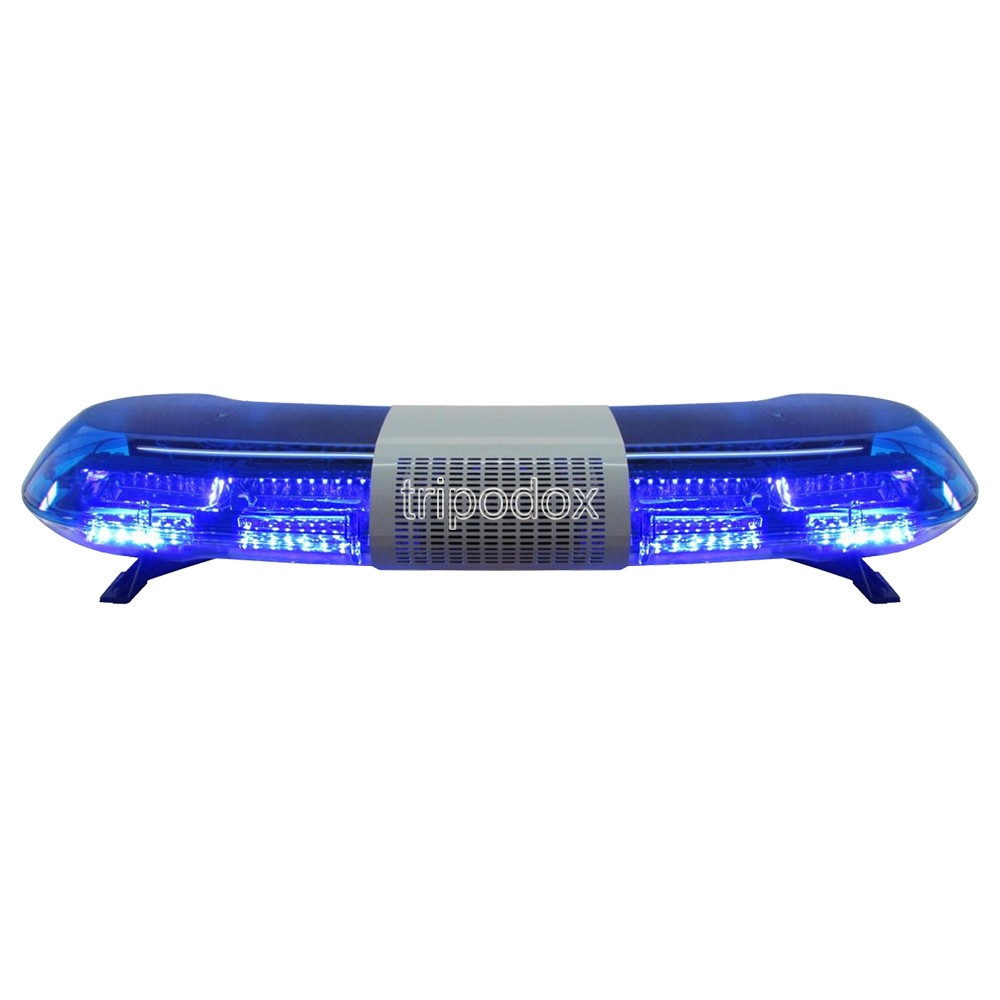

● New C type LED Lightbar with double layers Linear LED Modules. Brighter and Long Service Life.
● The shell is made of high-strength polycarbonate with good compression resistance and light transmission.
● The base is made of aluminum alloy, which is resistant to corrosion, oxidation and good heat conduction.
● With 3W linear LED as lamp source, and total 16 Linear LED Modules and 2 Alley Lights.
● LEDs available in single and dual color combinations of Red, Blue, Amber and White.
● Shells available in single and dual color combinations of Red, Blue, Amber and Clear.
● Can be used with Siren and Speaker, Speaker is installed inside the middle cover.
● More than 5 types flash patterns automatically flash.
● Mounting: Fixed with brackets, hooks and bolts.
● The general length of lightbar is 48".
● Welcome to customize the lightbars of different sizes, colors and flashing types.
● Warranty: 5 Years
Specification
Model No.
TBD-1620M
Voltage
DC12V
Current
9.3 A
Output Power
112W
Lamp Source
3W Linear LED
LED Color
Red / Blue / Amber / White
Lens Color
Red / Blue / Amber
Operating Temp
-40℃ ～ +65℃
Material
Aluminum Base and PC Lens
Dimensions (LxWxH)
1240x373x140 mm
Carton Size
1290x390x270 mm, 1 Set/Ctn
Weight
15 kg
Mounting
Fixed with Brackets and Hooks
Configuration
9M Linease LED Modules: 8 PCS
4M Linear LED Modules: 10 PCS
100Watts Speaker: 1 PC
