Product Details
Product Structure
Specification
| Model No. | TBD-1610L |
| Voltage | DC12V |
| Current | 10.0A |
| Output Power | 120W |
| Lamp Source | 0.25W / Φ5 LED |
| LED Color | Red / Blue / Amber / White |
| Lens Color | Red / Blue / Amber / Clear |
| Operating Temp | -40℃ ～ +65℃ |
| Material | Aluminum Base and PC Lens |

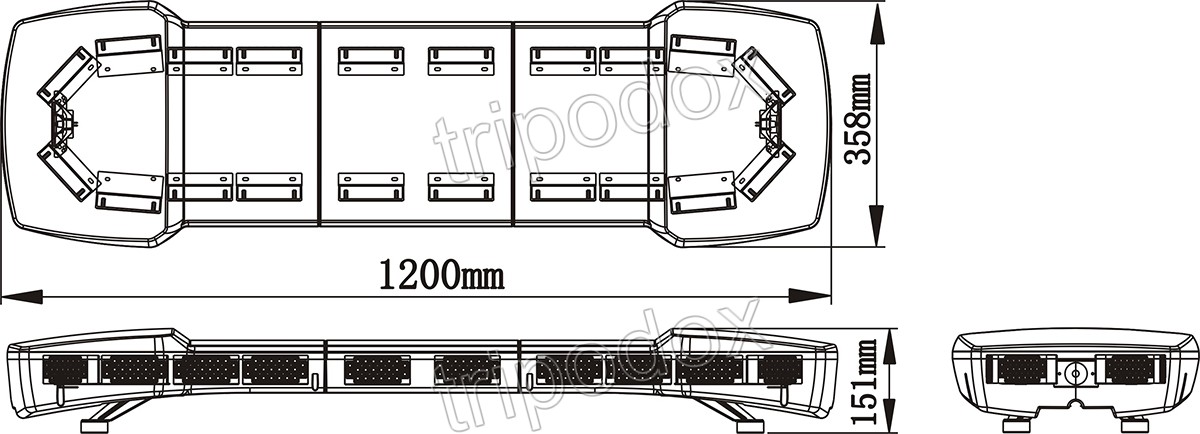

| Dimensions (LxWxH) | 1200x358x151 mm |
| Carton Size | 1290x390x200 mm, 1 Set/Ctn |
| Weight | 12 kg |
| Mounting | Fixed with Brackets and Hooks |
| Configuration | LED11 LED Modules: 20 PCS |
| LED Alley Lights: 2 PCS |
