Product Details
Product Structure
Specification
Model No.
TBD-1610H
Voltage
DC12V
Current
7.5A
Output Power
90W
Lamp Source
3W High-Power LED
LED Color
Red / Blue / Amber / White
Lens Color
Red / Blue / Amber / Clear
Operating Temp
-40℃ to +65℃
Material
Aluminum Base and PC Lens

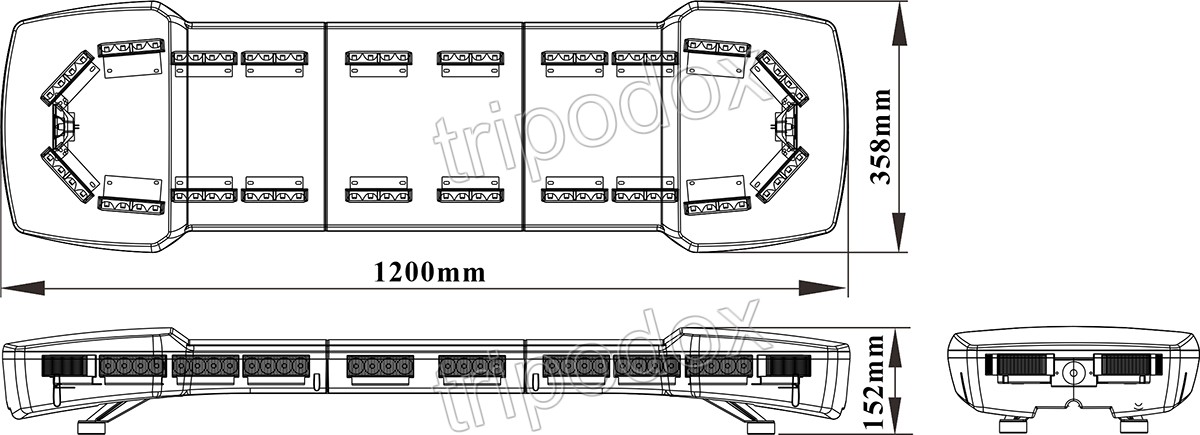

Dimensions (LxWxH)
1200x358x152 mm
Carton Size
1290x390x200 mm, 1 Set/Ctn
Weight
12 kg
Mounting
Fixed with Brackets and Hooks
Configuration
4D LED Modules: 20 PCS
LED Alley Lights: 2 PCS
