Product Details
Features
● The shell is made of high-strength polycarbonate with good compression resistance and light transmission.
● The base is made of aluminum alloy, which is resistant to corrosion, oxidation and good heat conduction.

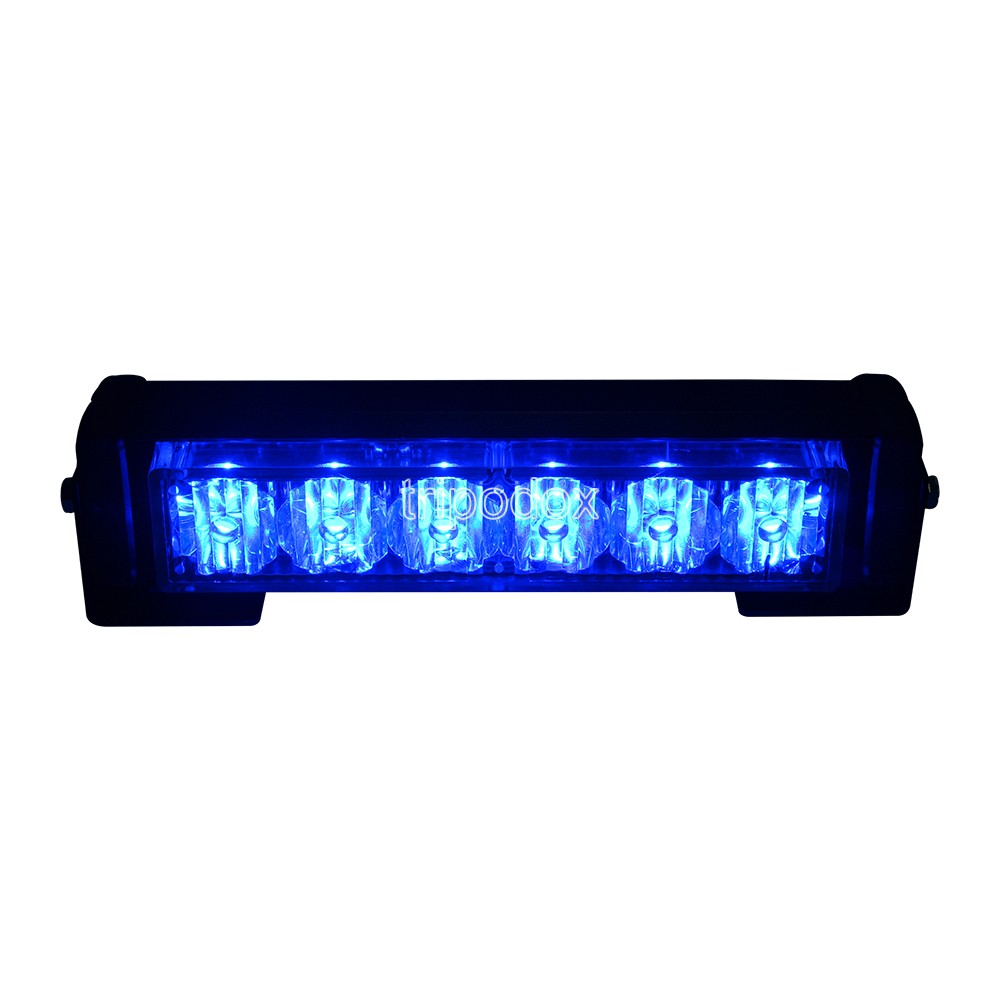

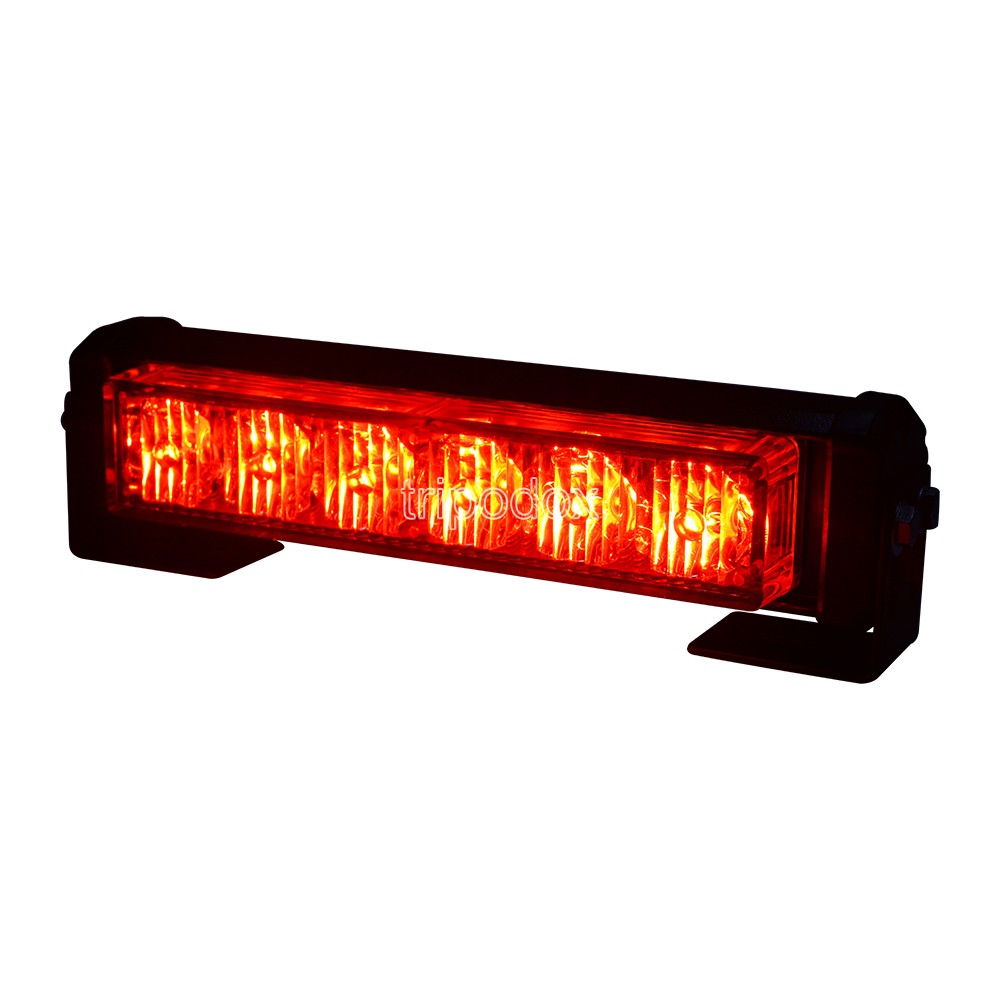

● With 1W high-power LED as lamp source, LED Color available red, Blue, amber or white.
● The length available in 6.7", 12.5", 18.4", 24.3", 30.1", 36"and 41.9".
● More than 6 types flash patterns can be choice.
● Welcome to customize the warning lights of different sizes, colors and flashing types.
● Five-Year Warranty
Specifications
| Model No. | LED-106H-1 | LED-106H-2 | LED-106H-3 | LED-106H-4 | LED-106-5 | LED-106H-6 | LED-106H-7 |
| Voltage |
DC12V |
||||||
| Current | 0.5A | 1.0A | 1.5A | 2.0A | 2.5A | 3.0A | 3.5A |
| Output Power | 6W | 12W | 18W | 24W | 30W | 36W | 42W |
| Lamp Source |
1W High-Power LED |
||||||
| LED Color |
Red / Blue / Amber / White |
||||||
| Lens Color |
Clear |
||||||
| Operating Temp |
-40℃ to +65℃ |
||||||
| Dimensions (LxWxH) | 169x46x40 mm | 318x46x40 mm | 467x46x40 mm | 616x46x40 mm | 765x46x40 mm | 914x46x40 mm | 1063x46x40 mm |
| Material |
Aluminum Base and PC Lens |
||||||
| Weight | 0.4 kg | 0.8 kg | 1.2 kg | 1.6 kg | 2.0 kg | 2.4 kg | 2.8 kg |

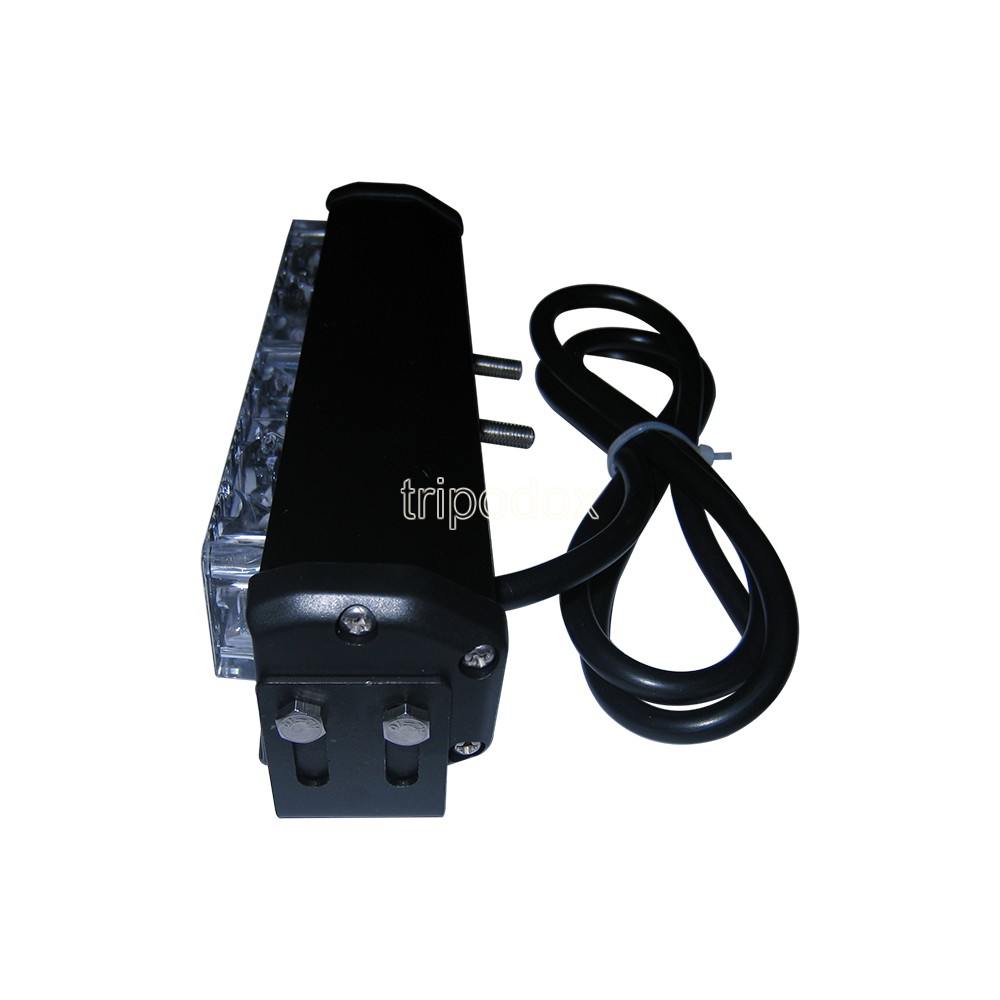

| Mounting |
Fixed with Bolts and Screws |
||||||

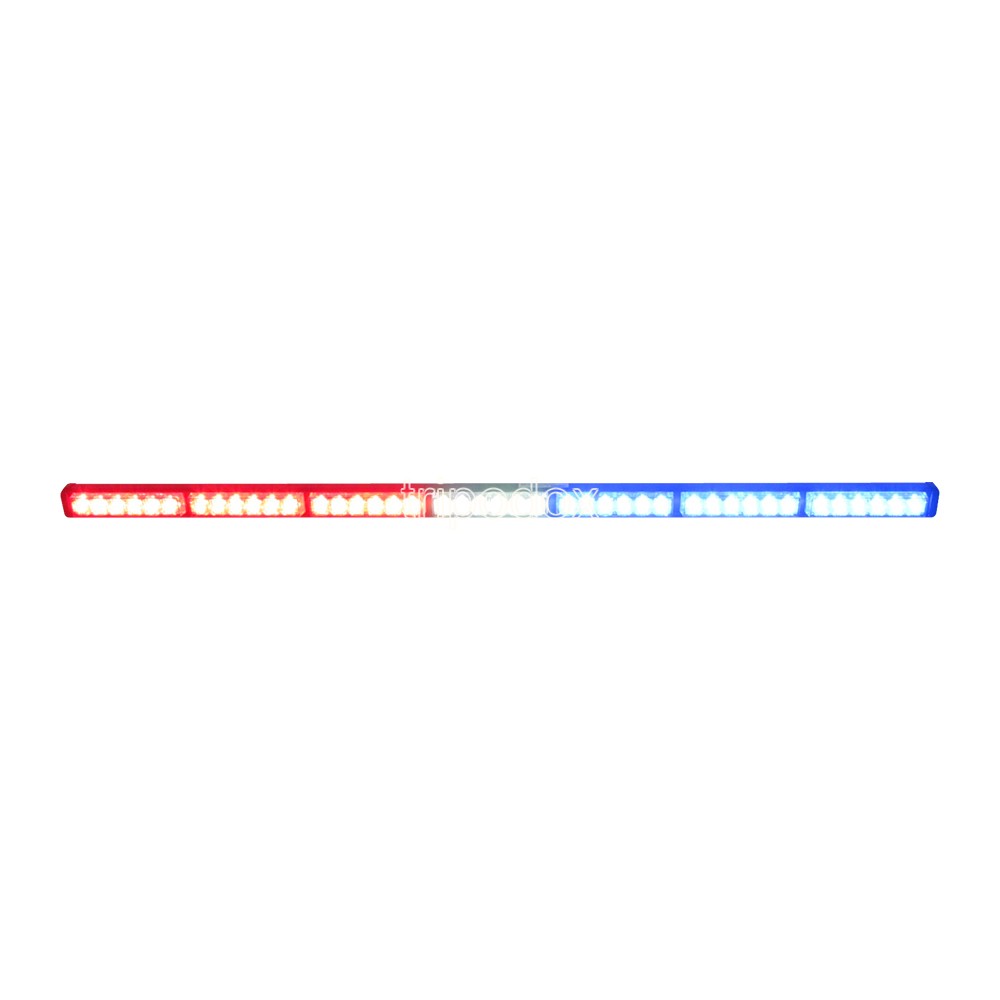

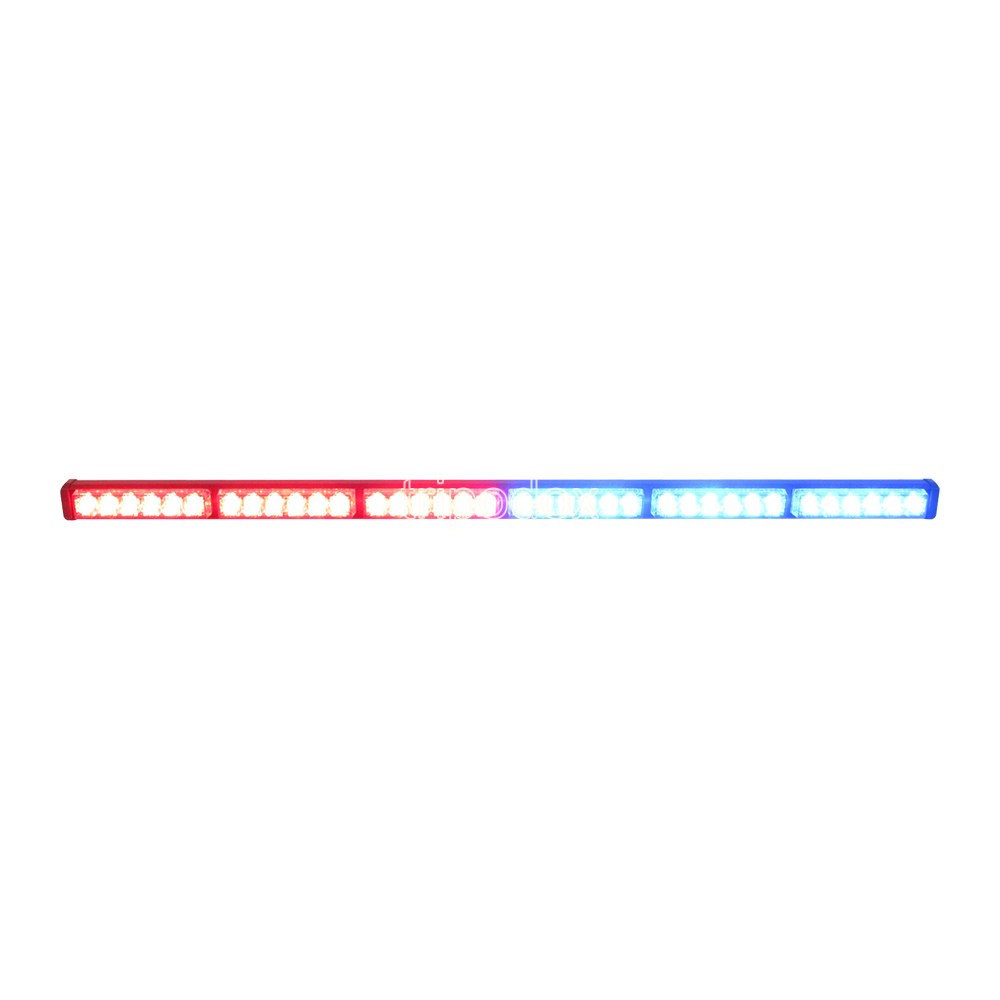

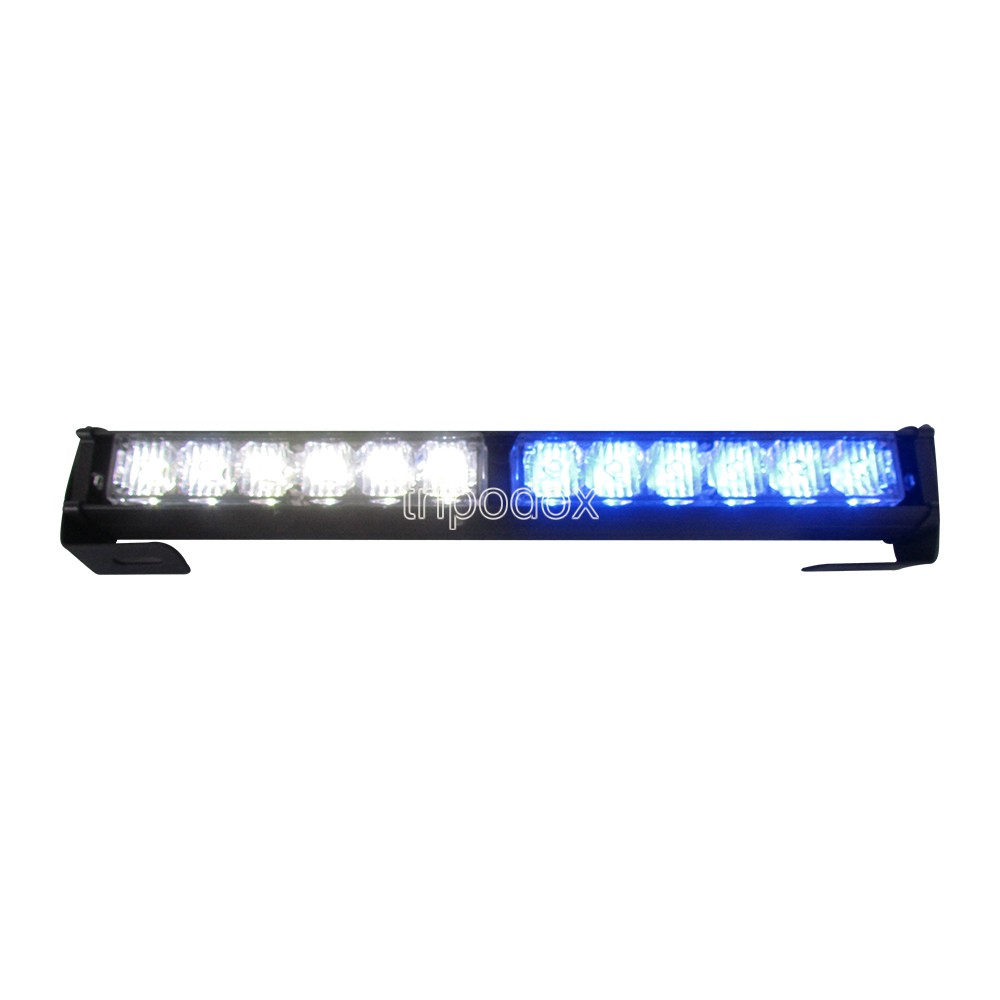

| Configuration | 1 LED Module | 2 LED Modules |
3 LED Modules |
4 LED Modules |
5 LED Modules |
6 LED Modules |
7 LED Modules |
