Product Details
Features

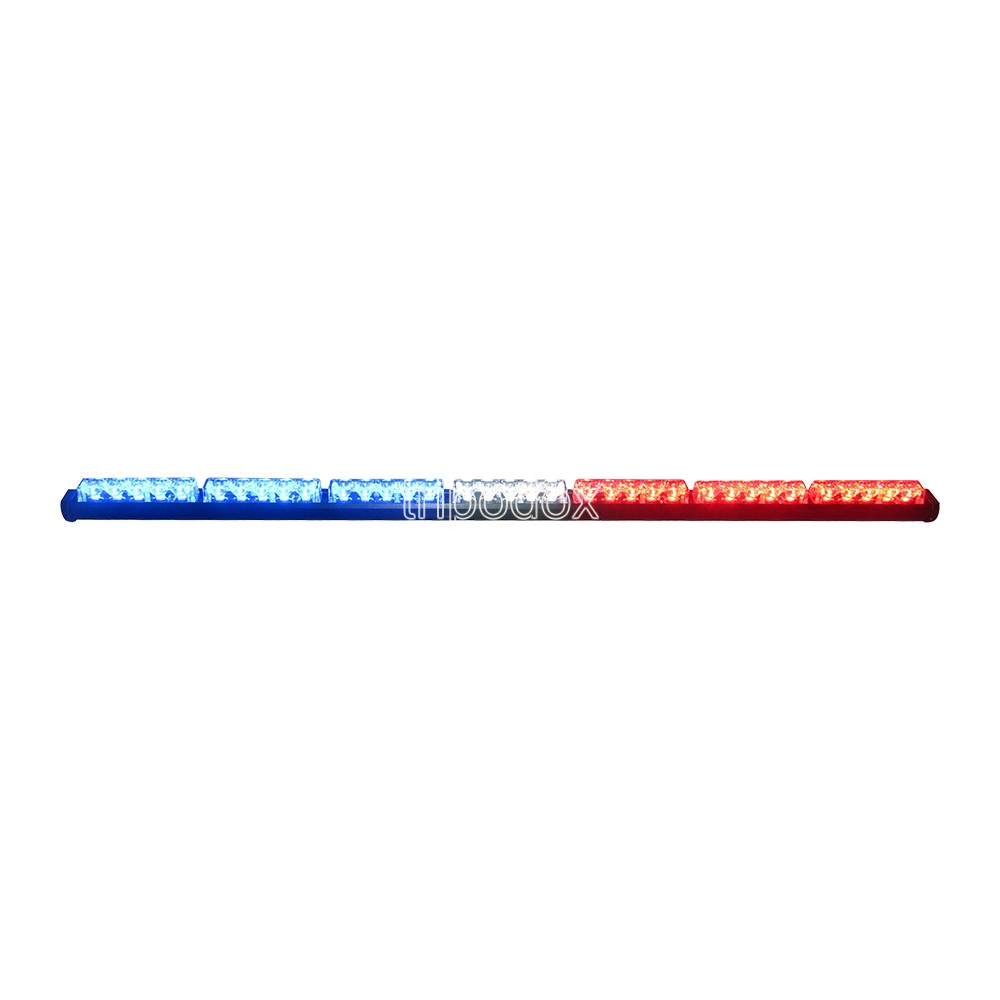

● The shell is made of high-strength polycarbonate with good compression resistance and light transmission.
● The base is made of aluminum alloy, which is resistant to corrosion, oxidation and good heat conduction.
● With 1W high-power LED as lamp source, LED Color available red, Blue, amber or white.
● The length available in 9.8", 14.6", 19.3", 24", 28.7"and 33.5".
● More than 6 types flash patterns can be choice.
● Welcome to customize the warning lights of different sizes, colors and flashing types.
● Five-Year Warranty
Specifications
Model No.
LED-105H-2
LED-105H-3
LED-105H-4
LED-105-5
LED-105H-6
LED-105H-7
Voltage
DC12V
Current
0.83A
1.25A
1.67A
2.08A
2.5A
2.92A
Output Power
10W
15W
20W
25W
30W
35W
Lamp Source
1W High-Power LED
LED Color
Red / Blue / Amber / White
Lens Color
Clear
Operating Temp
-40℃ to +65℃
Dimensions (LxWxH)
250x36x35 mm
370x36x35 mm
490x36x35 mm
610x36x35 mm
730x36x35 mm
850x36x35 mm
Material
Aluminum Base and PC Lens
Weight
0.70 kg
1.05 kg
1.40 kg
1.75 kg
2.15 kg
2.50 kg
Mounting
Fixed with Bolts and Screws
Configuration
2 LED Modules
3 LED Modules
4 LED Modules
5 LED Modules
6 LED Modules
7 LED Modules
