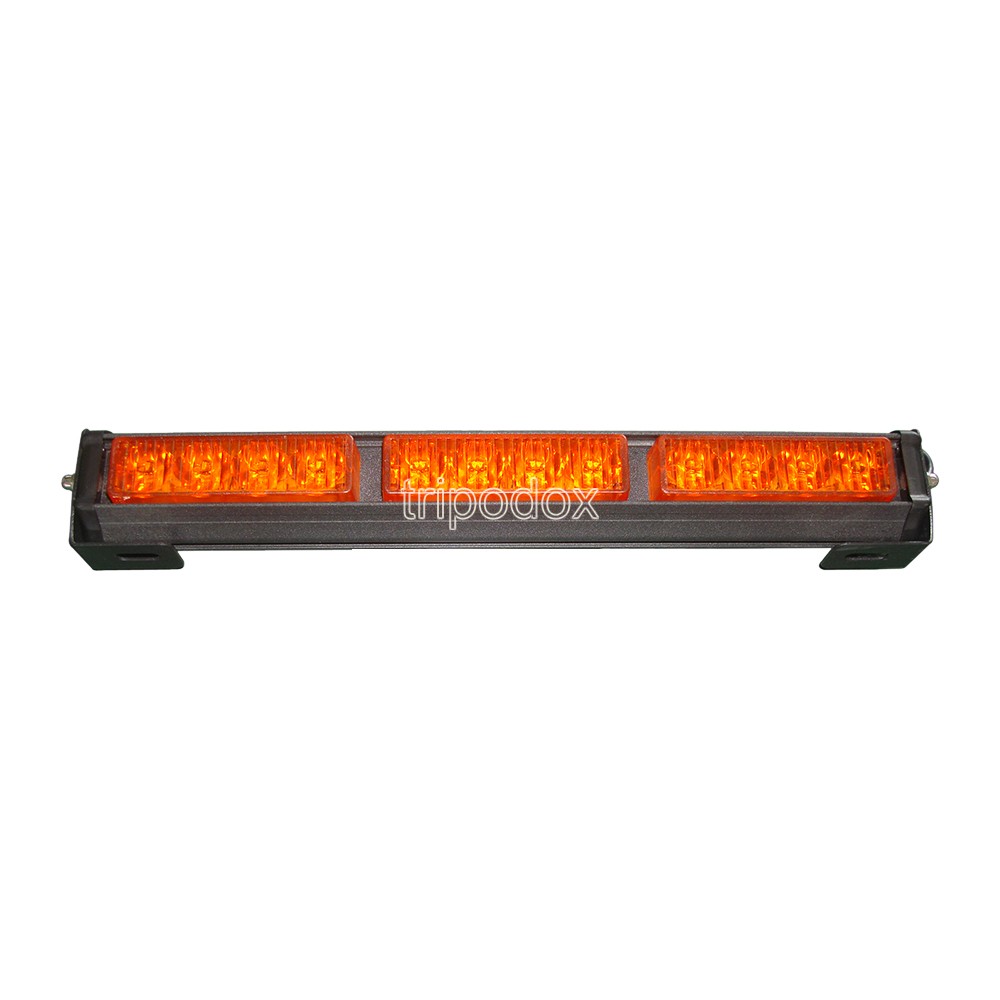

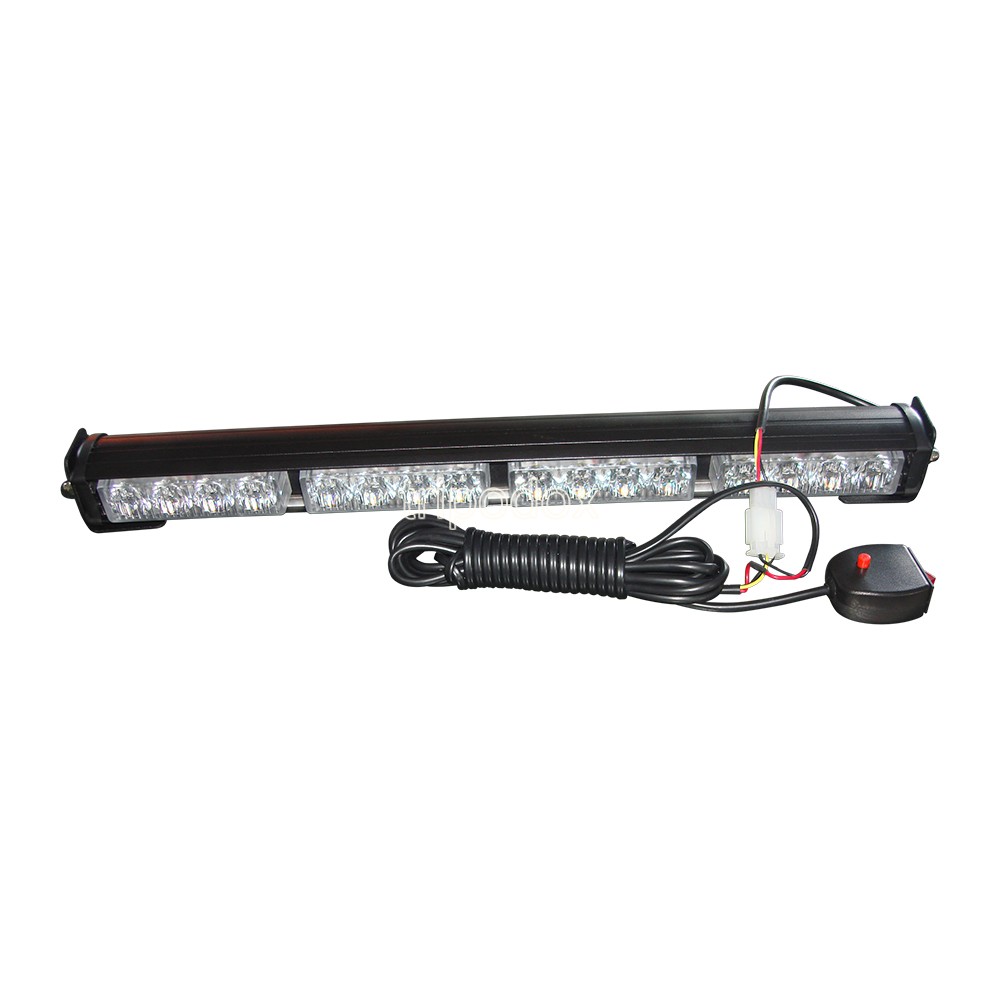

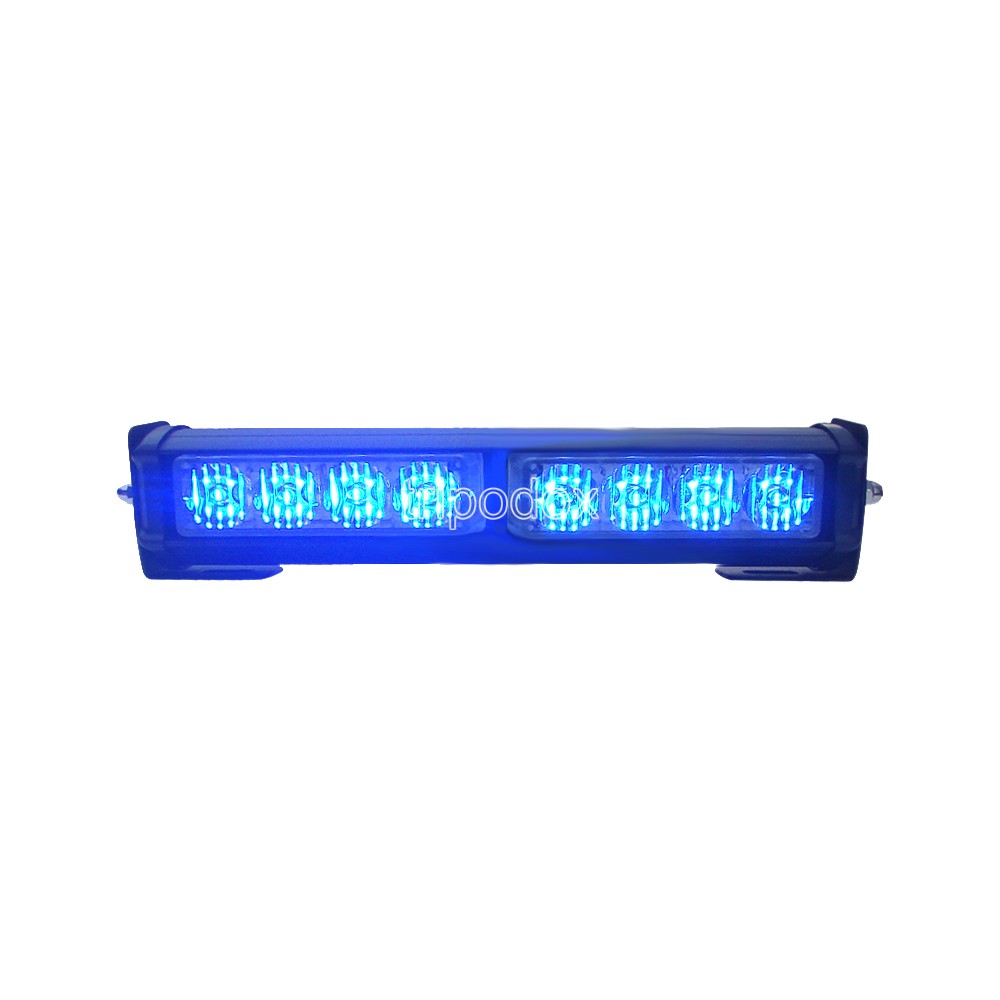

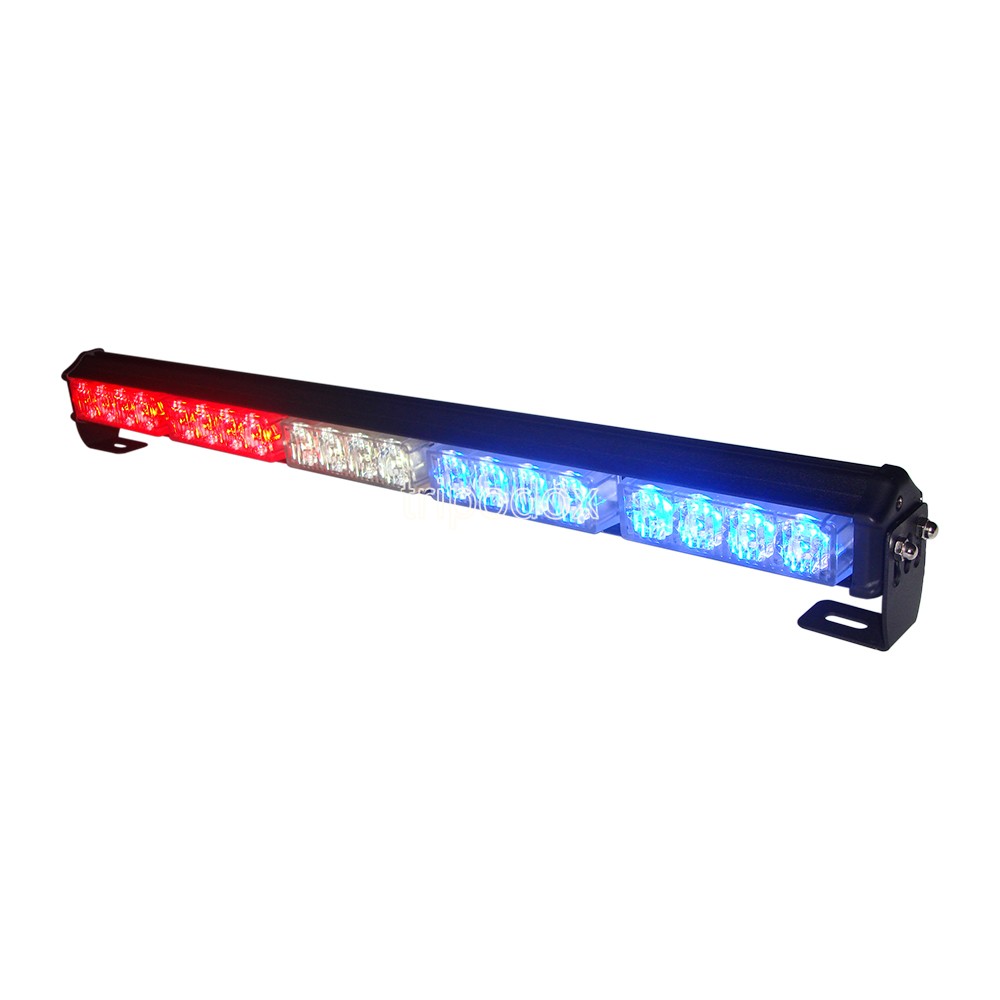

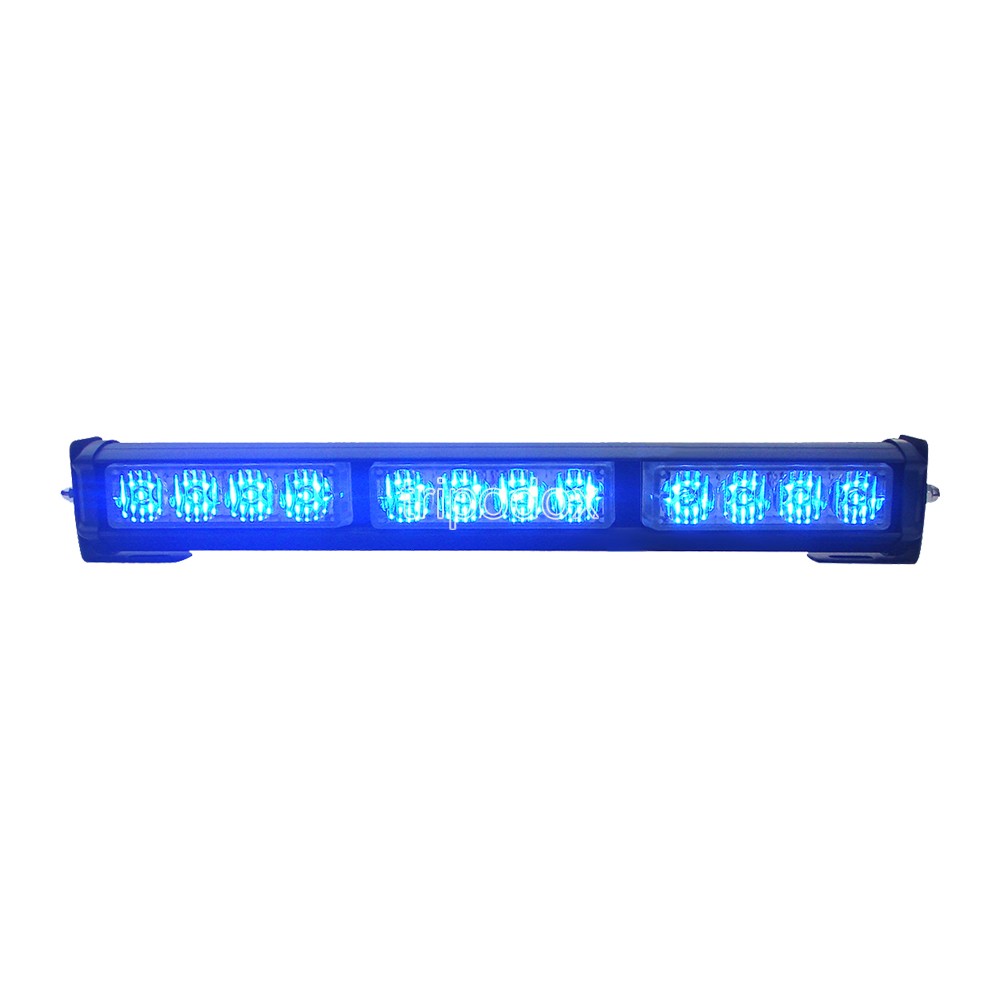

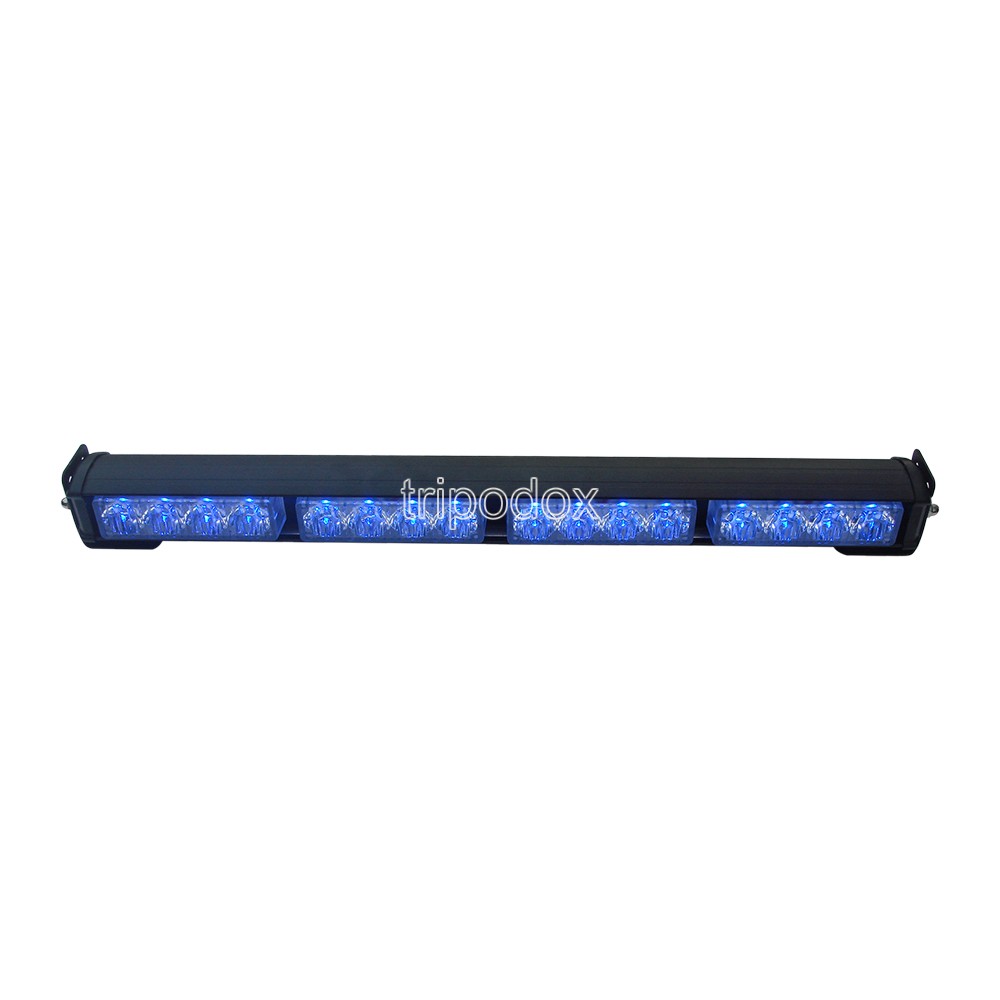

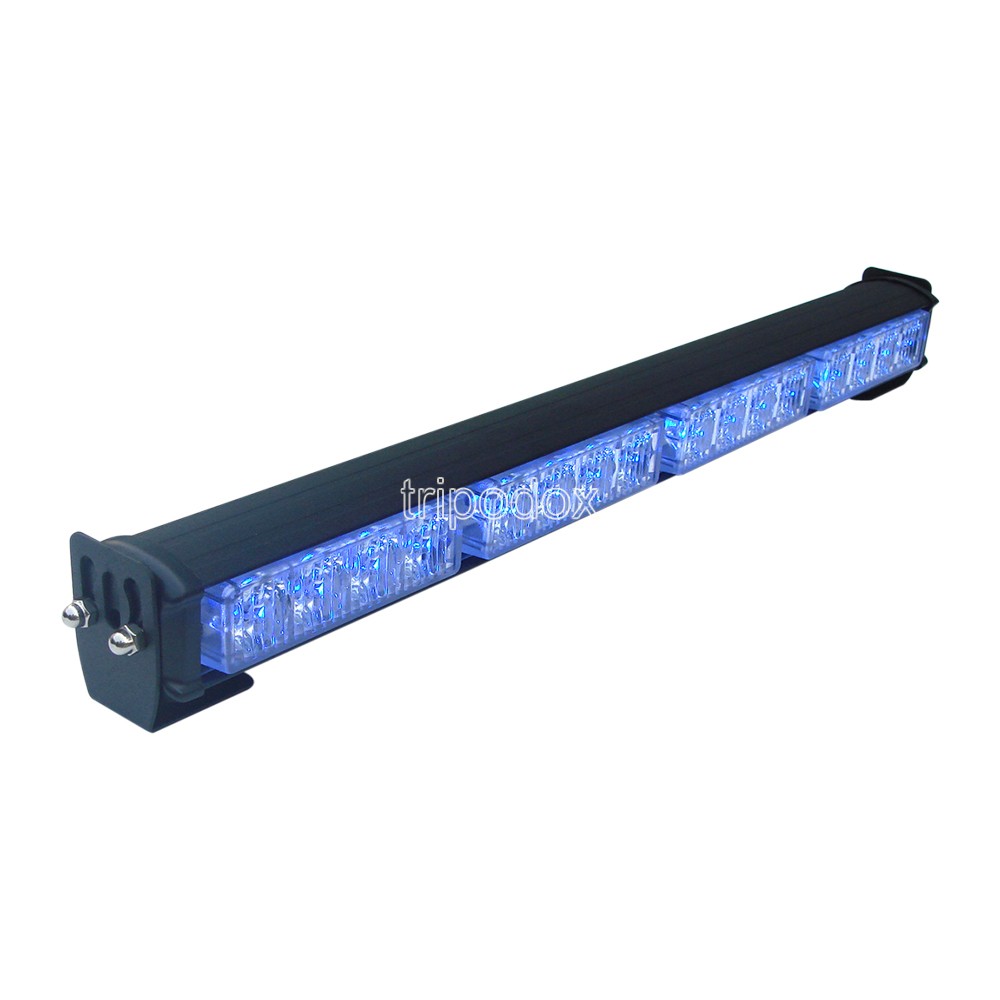

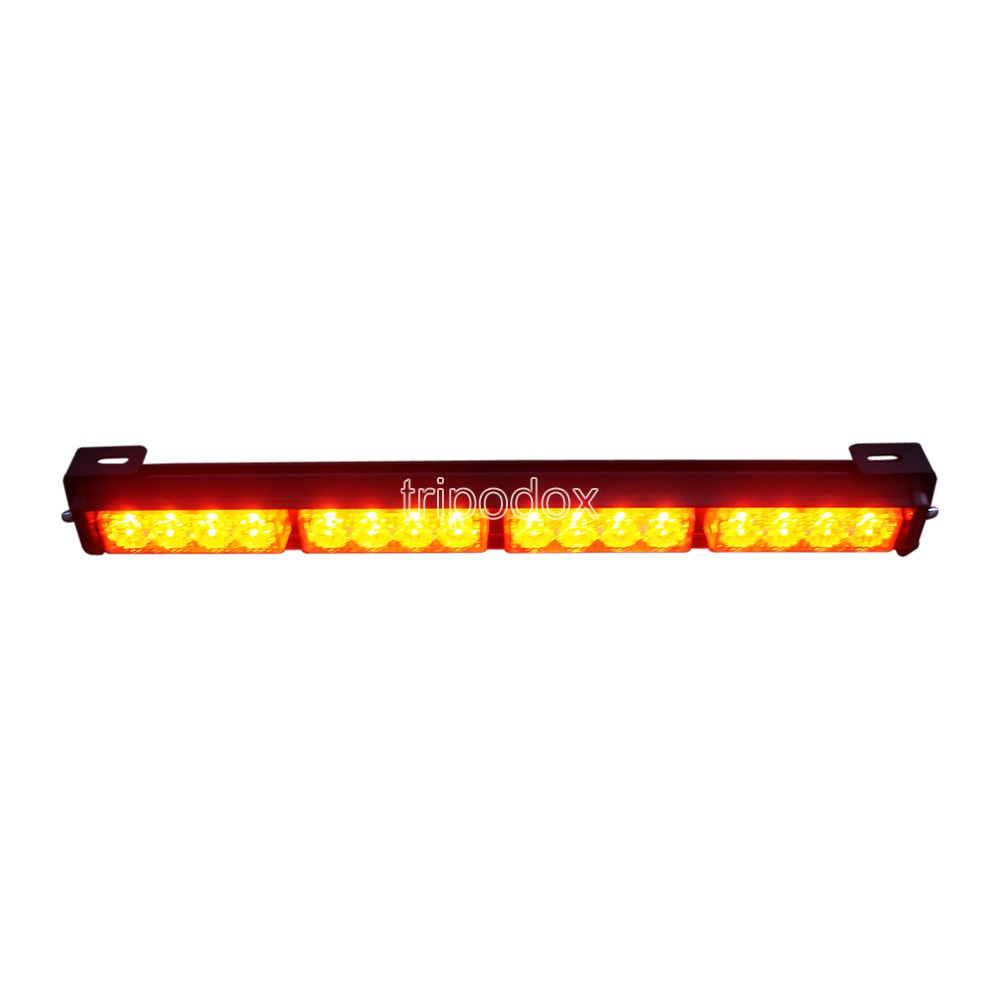

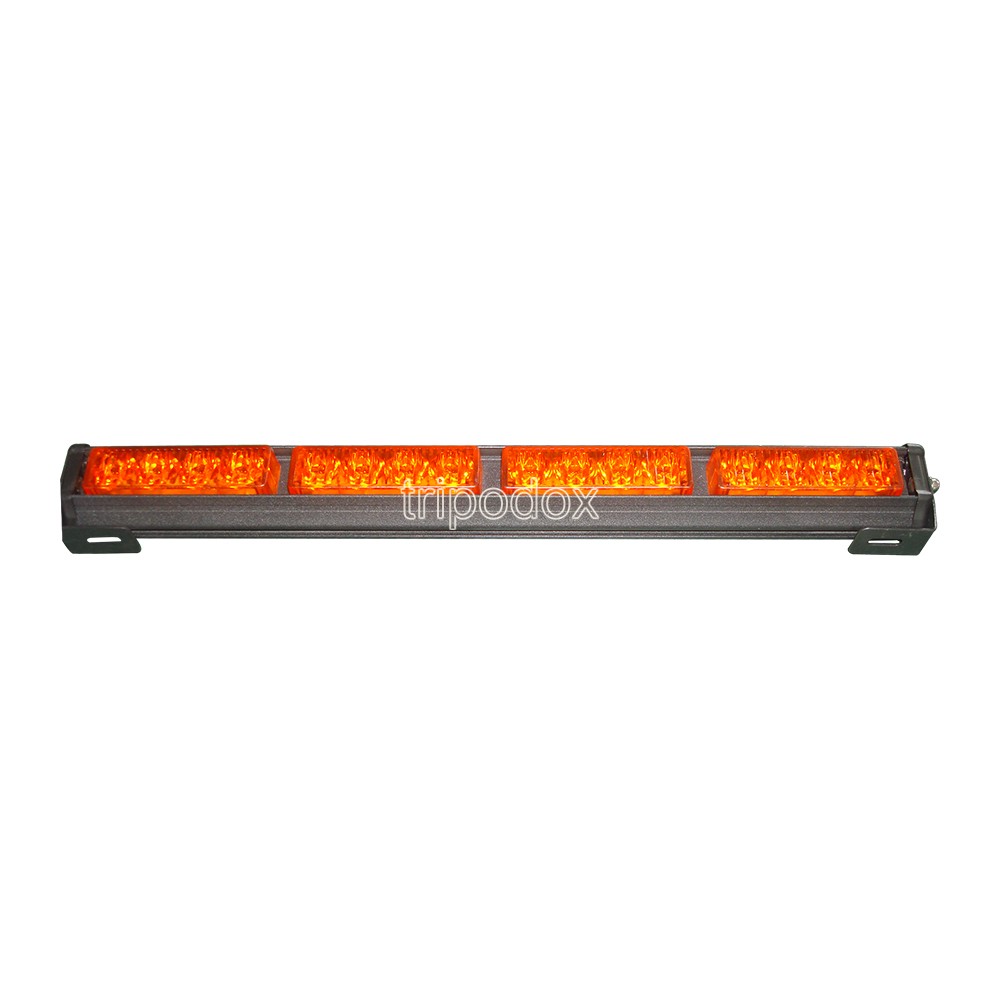

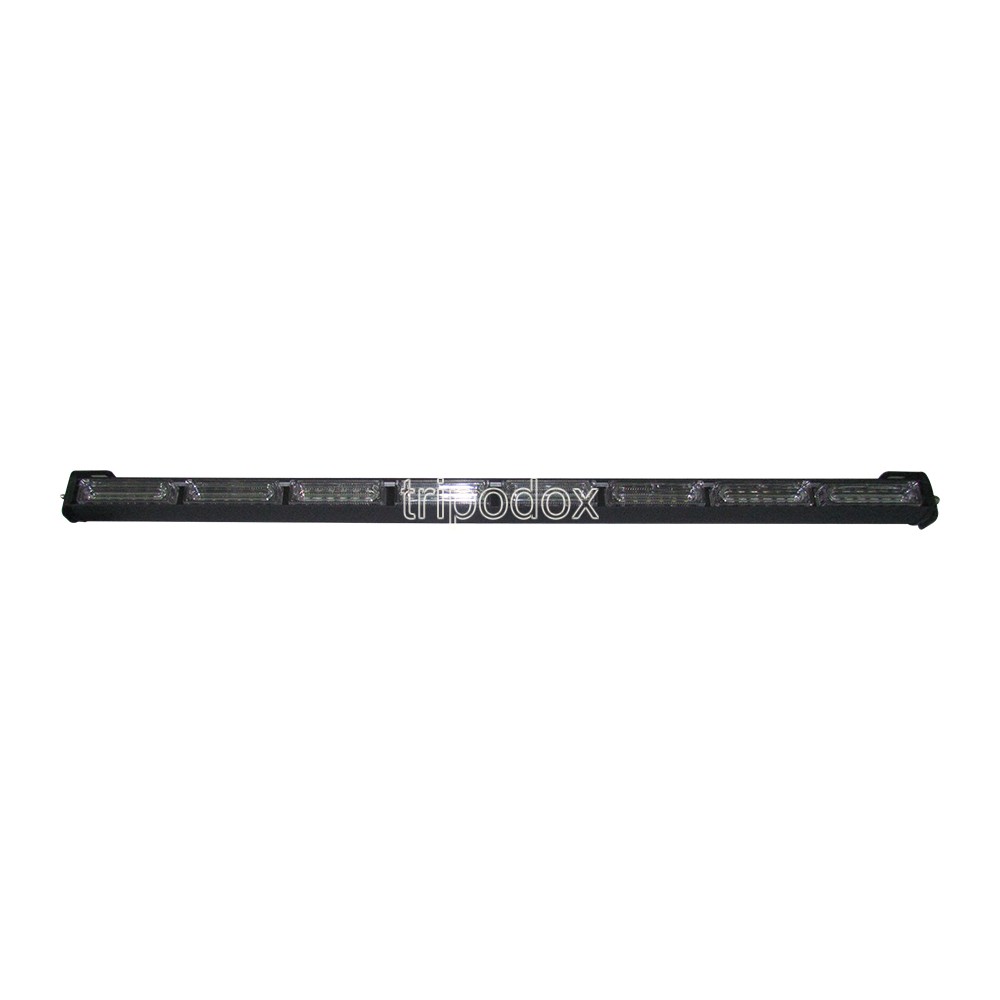

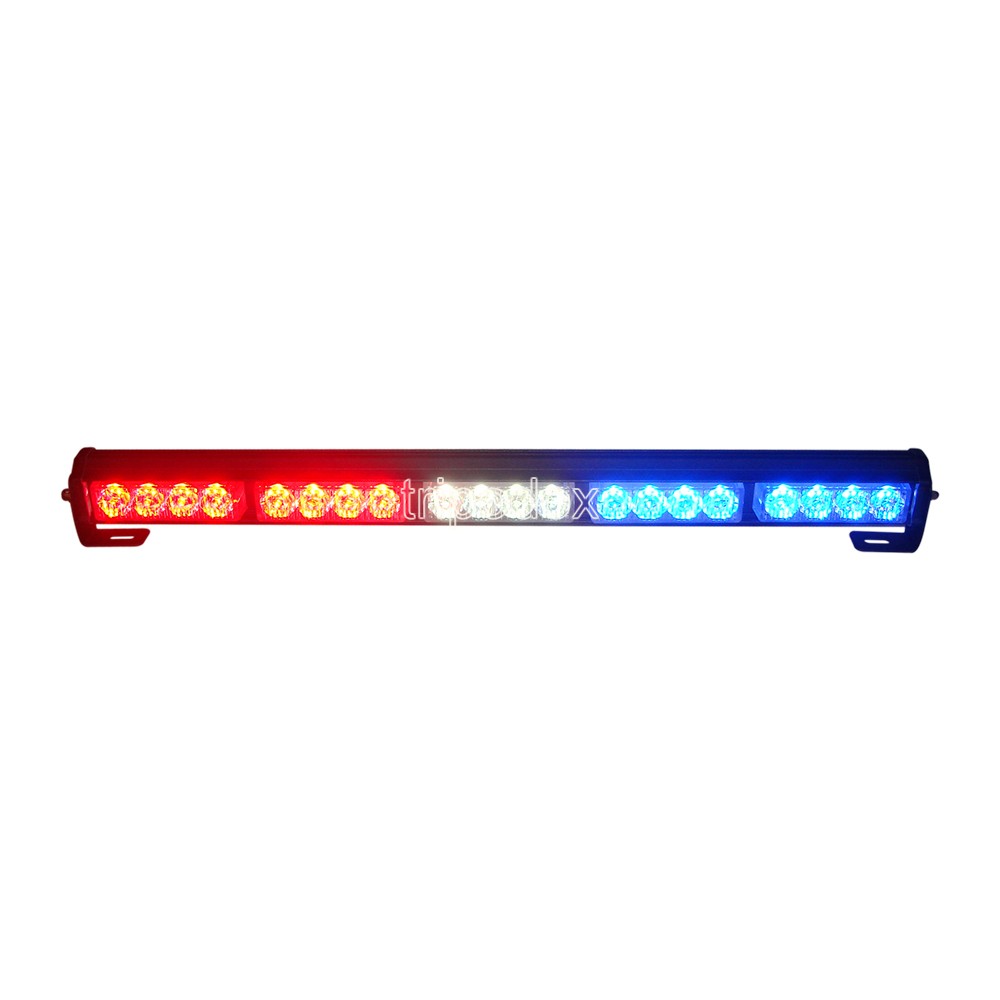

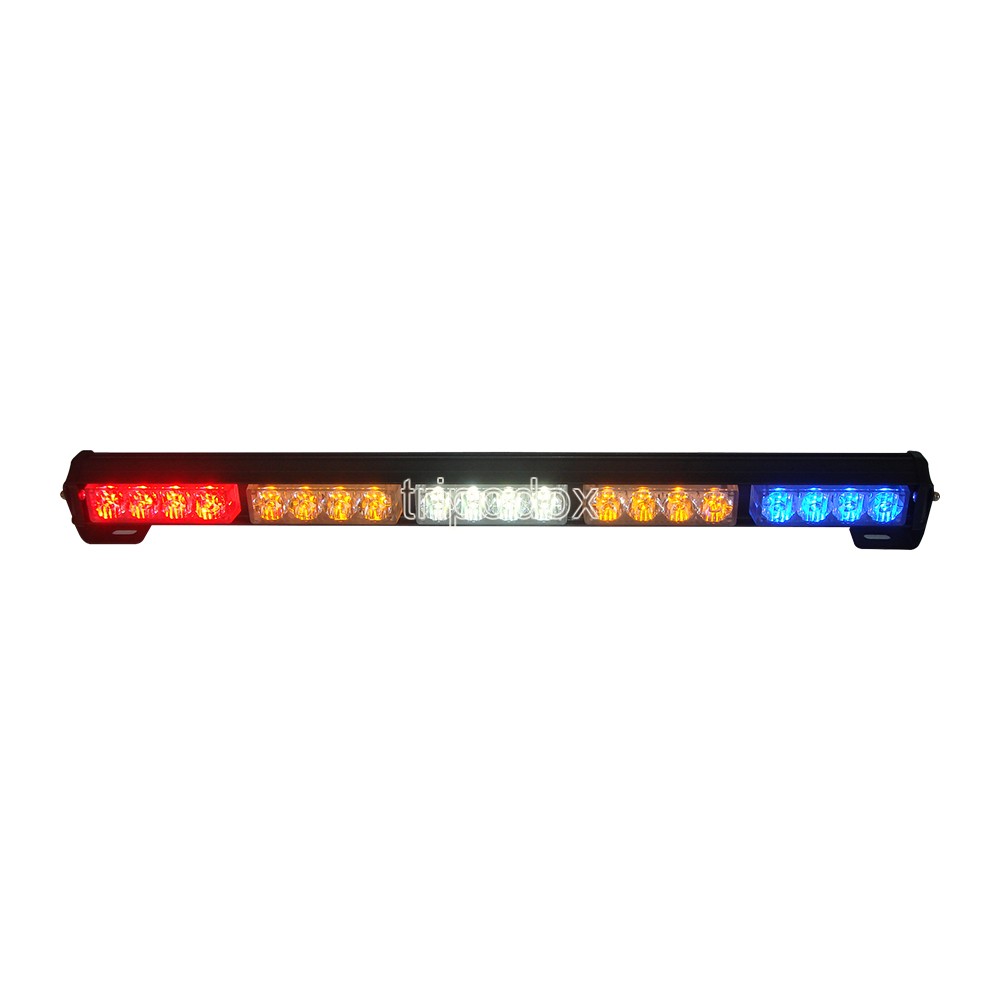

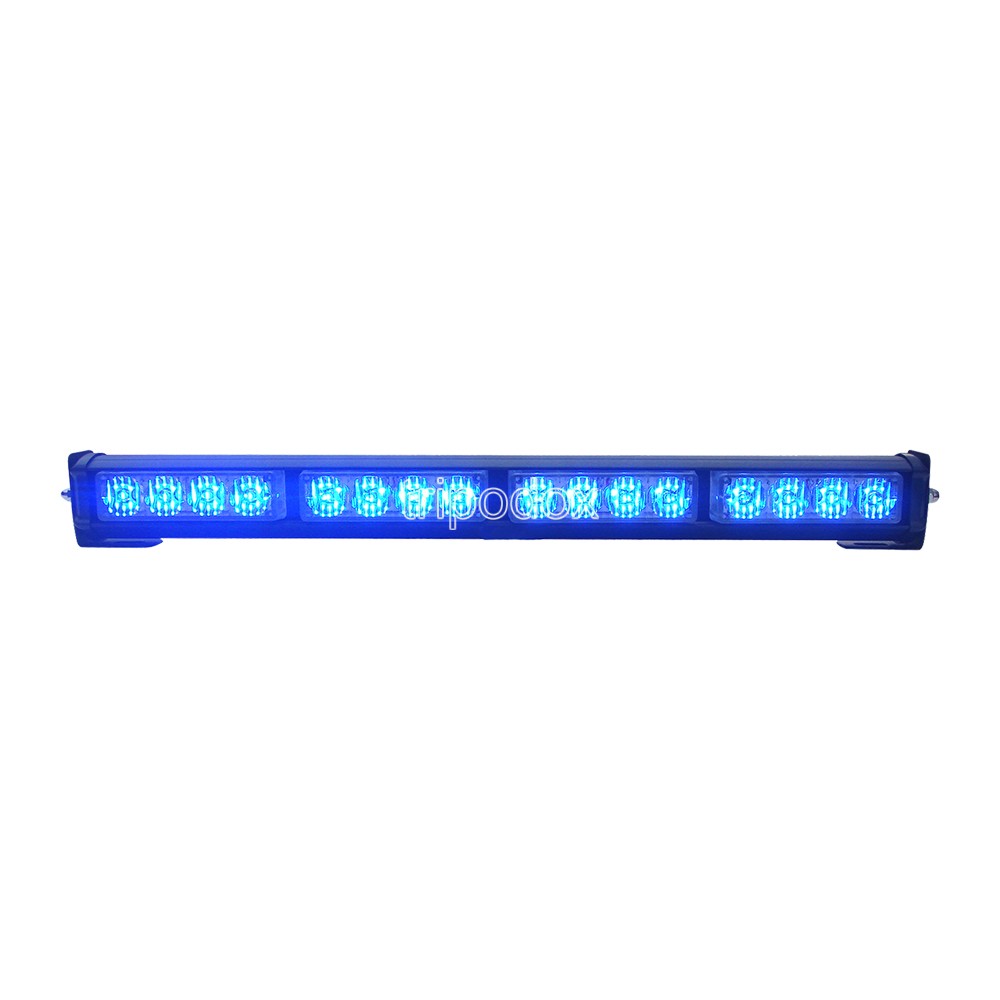

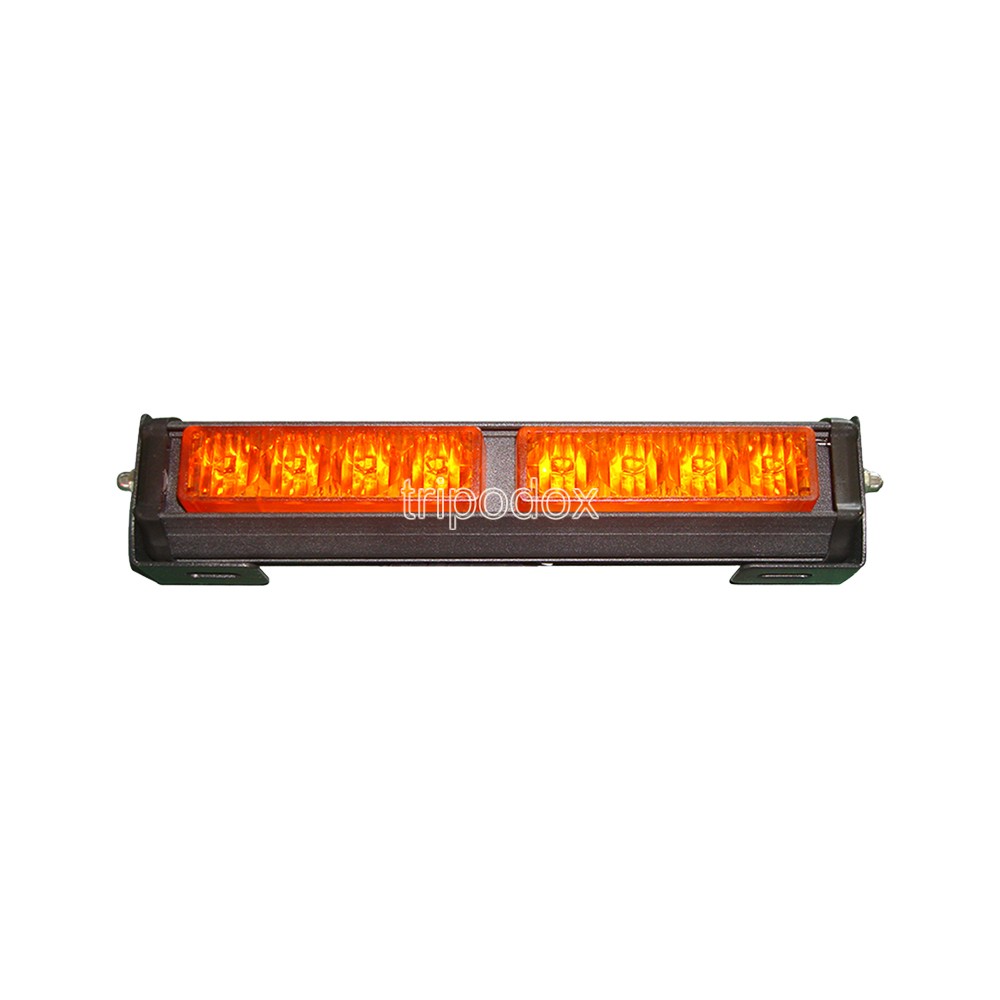

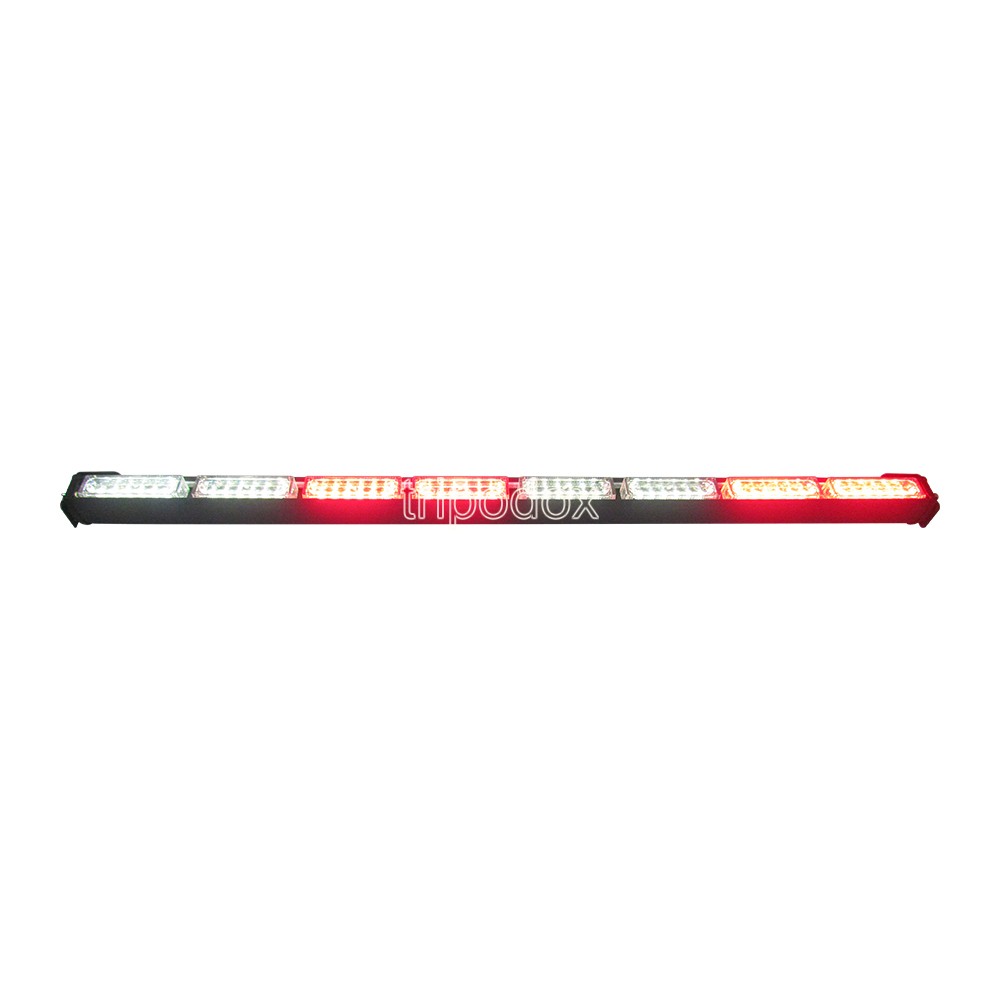

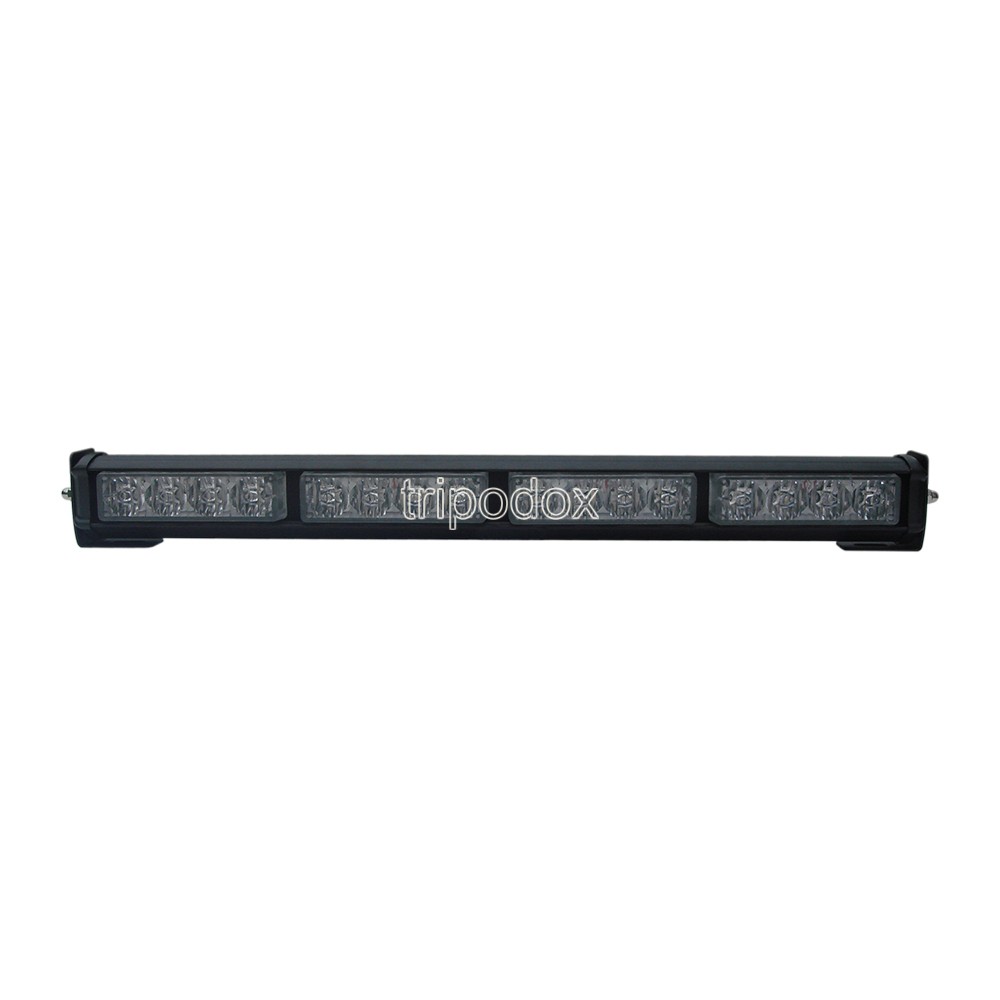

LED-104H Series Directional Warning Lights

Scan code

Brief Introduction:

LED Directional Warning Lights with 1W High-Power LED.

Model:LED-104H-2

LED-104H-2
LED-104H-3
LED-104H-4
LED-104H-5
LED-104H-8

Voltage:DC12V

DC12VDC24V

Product Details

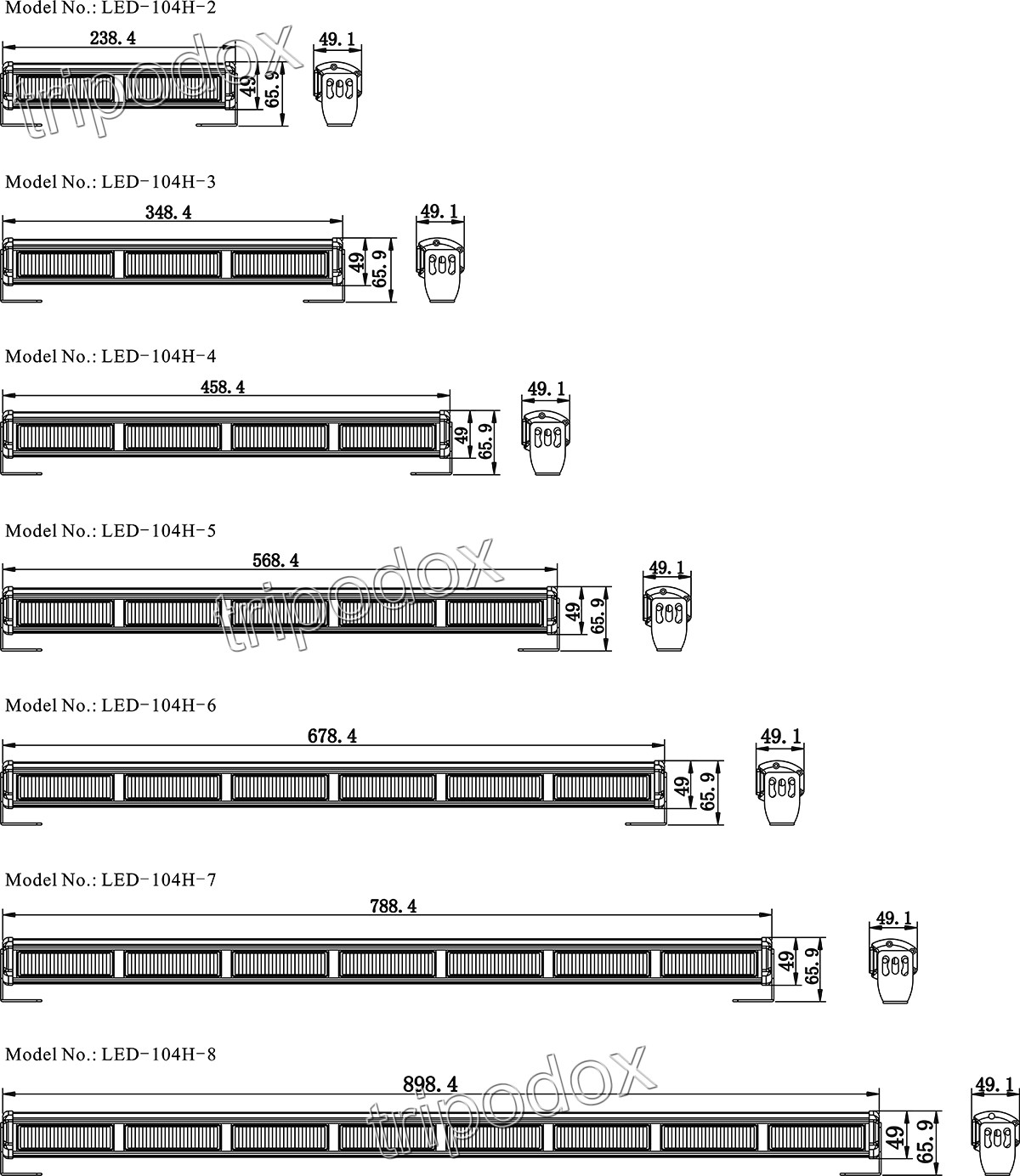

Product Structure




Features


  The shell is made of high-strength polycarbonate with good compression resistance and light transmission.

●  The base is made of aluminum alloy, which is resistant to corrosion, oxidation and good heat conduction.

●  With 1W high-power LED as lamp source, LED Color available red, Blue, amber or white.

●  The length available in 9.4", 13.7", 18", 22.4", 26.7", 31" and 35.4".

●  More than 6 types flash patterns can be choice.

●  Welcome to customize the warning lights of different sizes, colors and flashing types.

●  Five-Year Warranty


Specifications


Model No LED-102H-2 LED-102H-3 LED-102H-4 LED-102H-5 LED-102H-6 LED-102H-7 LED-102H-8
Voltage DC12V
Current 0.7A 1.0A 1.3A 1.7A 2.0A 2.3A 2.7A
Output Power 8W 12W 16W 20W 24W 28W 32W
Lamp Source 1W High-Power LED
LED Color Red / Blue / Amber / White
Lens Color Clear
Operating Temp -40℃ ~ +65℃
Dimensions (LxWxH) 238x49x66 348x49x66 458x49x66 568x49x66 678x49x66 788x49x66 898x49x66
Material Aluminum Base and PC Lens
Weight 0.6 kg 0.9 kg 1.2 kg 1.5 kg 1.8 kg 2.1 kg 2.4 kg
Mounting Fixed with Bolts and Screws
Configuration 2 LED Modules 3 LED Modules
4 LED Modules 5 LED Modules 6 LED Modules 7 LED Modules 8 LED Modules
